Product information
What to know about this model

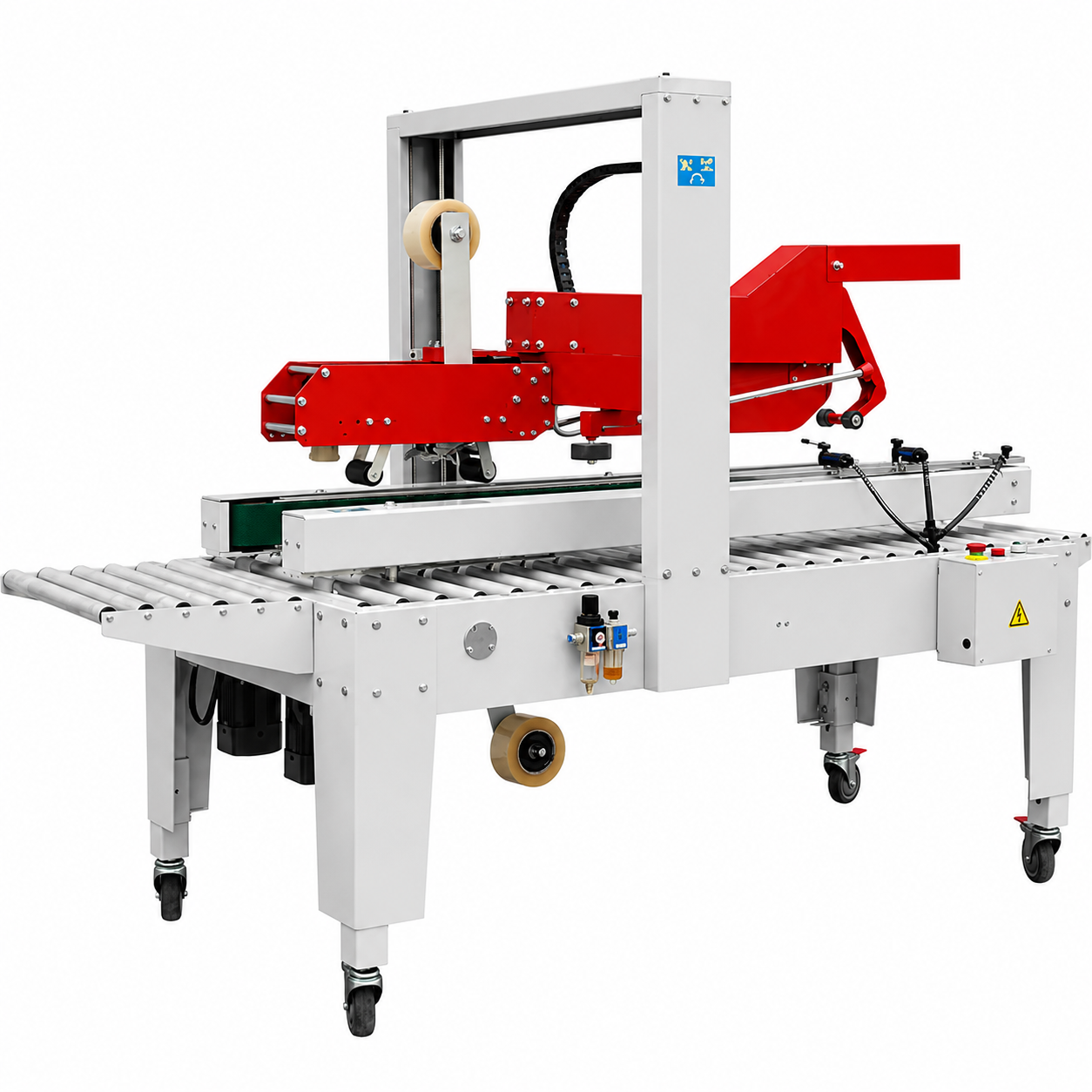

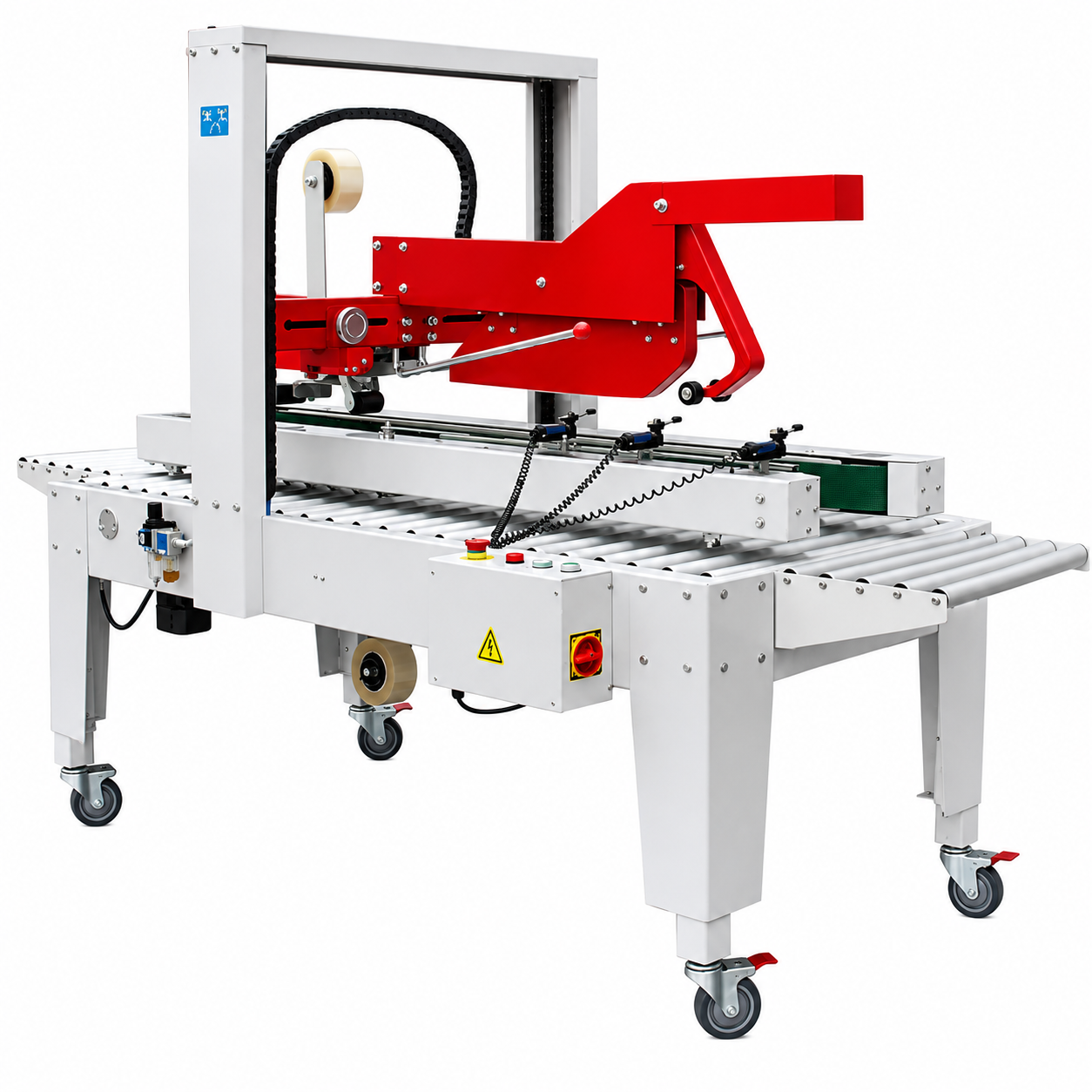

Description FXJ series is designed to seal carton by applying adhesive tape. Cost effective, High speed. Easy size changeovers. For integration into production line or as stand alone machine. Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons. The machine folds front/side/rear flaps at high speed. Two-side drive belts. Designed with upper & bottom tape heads or just upper tape head that are ideal for sealing uniform cartons continuously. Model FXJ-Z: easy loading and unloading due to the brackets installed on the two ends of the machine.
Specifications
| MODEL | FPCS-5050Z |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 260 |
| Air Compressor (Mpa) | 0.4-0.6 |
| Speed (m/min) | 22 m/min (25 cartons/min) |
| Max. Carton Size (L×W×H)(mm) | 600×500×500 |
| Min. Carton Size (L×W×H)(mm) | 180×160×180 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 600-750 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (L×W× H)(mm) | 1830×920×(1450-1600) |
| Net Weight (kg) | 250 |
| Max. Conveyor Load(kg) | 30 |
