Product information
What to know about this model

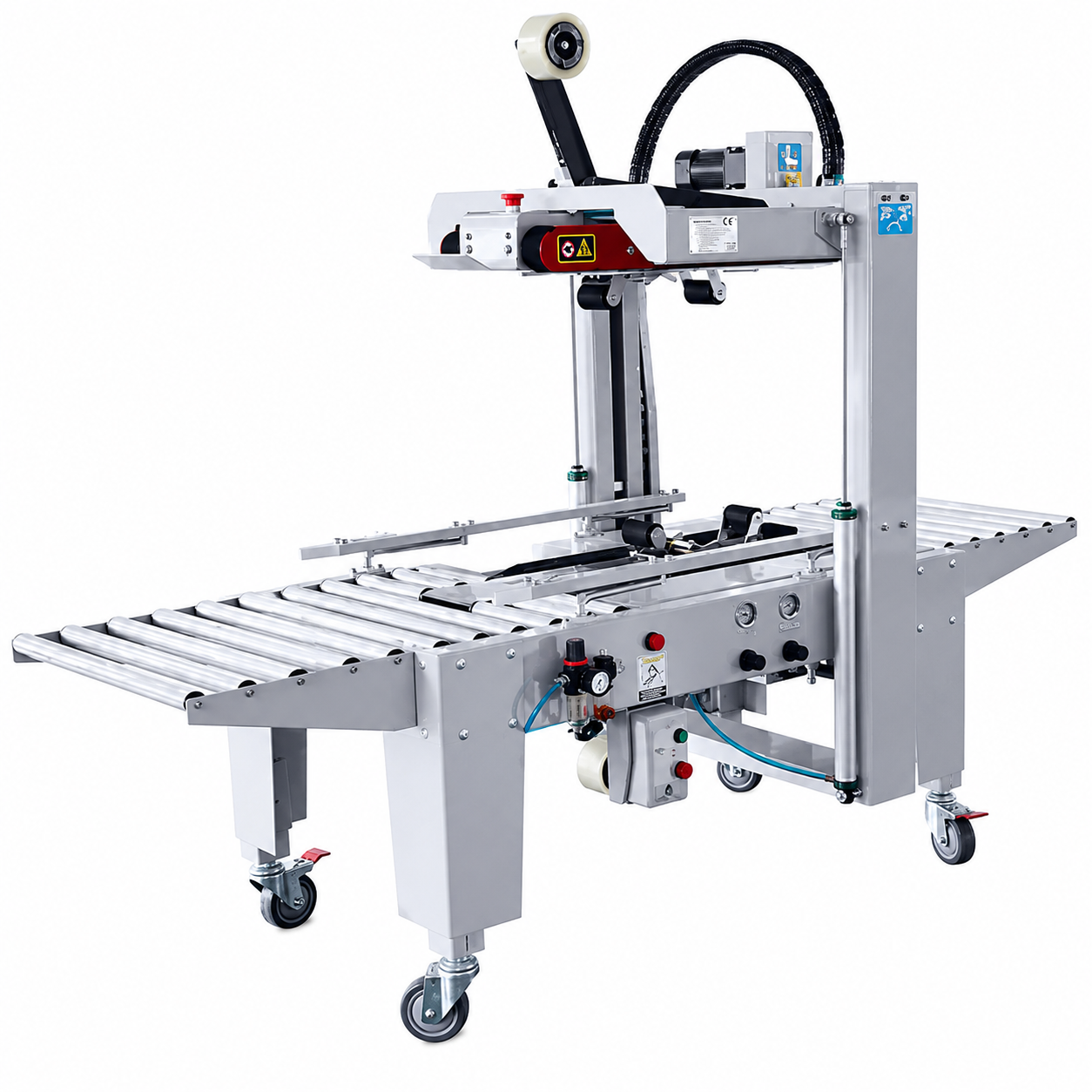

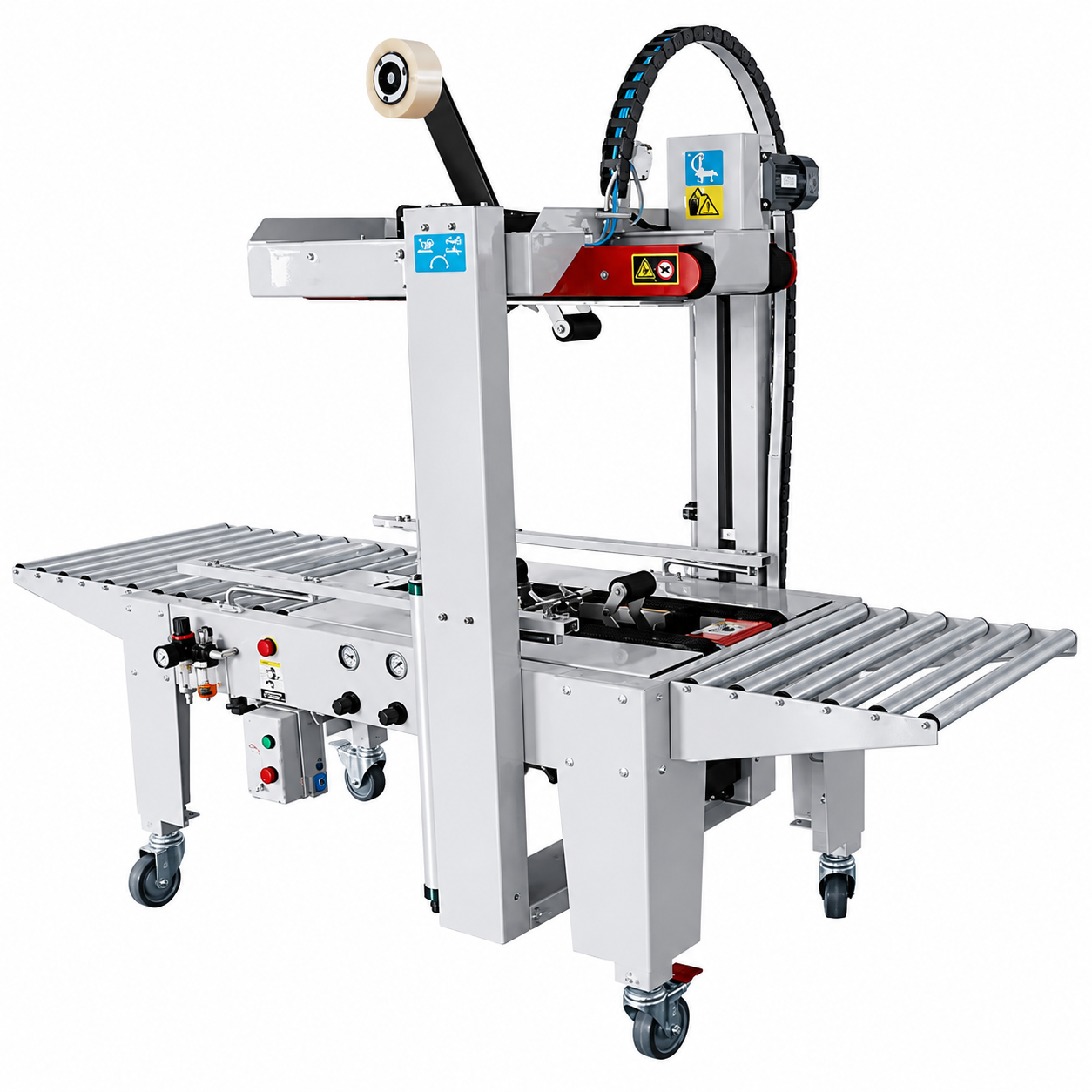

Description Top and bottom drive belts, pneumatic controls for upper & bottom tape head, used in circumstance where carton size is changed frequently at lower speed or where carton size is not changed frequently at highest speed medium. Automatic adjustments to obtain required widths and heights.
Specifications
| MODEL | FPCS-5050Q |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Air Compressor (Mpa) | 0.5-0.6 |
| Speed (m/min) | 24 m/min (35 cartons/min) |
| Max. Carton Size (W×H)(mm) | 500×500 |
| Min. Carton Size (W×H)(mm) | 200×120 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (L×W× H)(mm) | 1970×780×(1280-1460) |
| Net Weight (kg) | 160 |
