Product information
What to know about this model

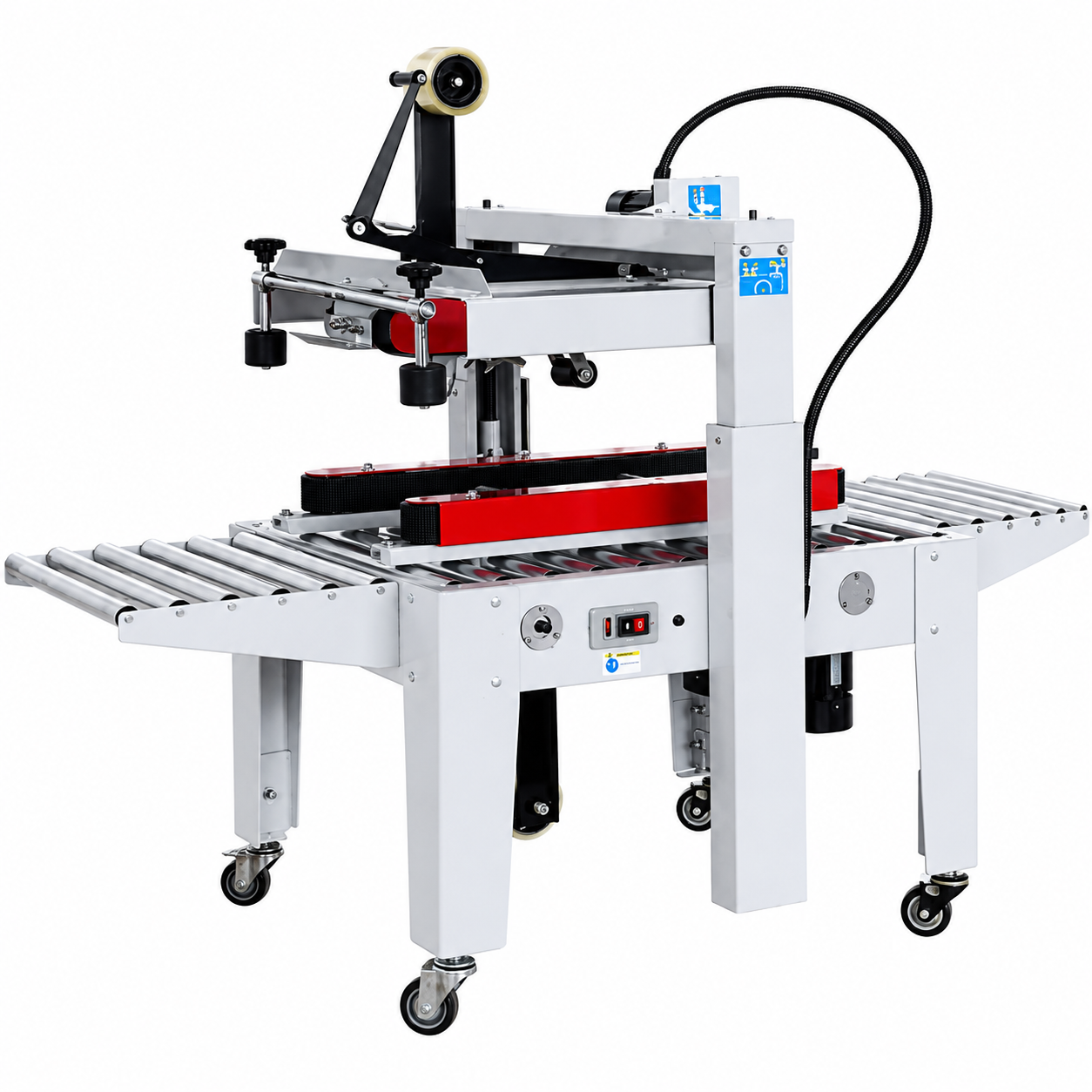

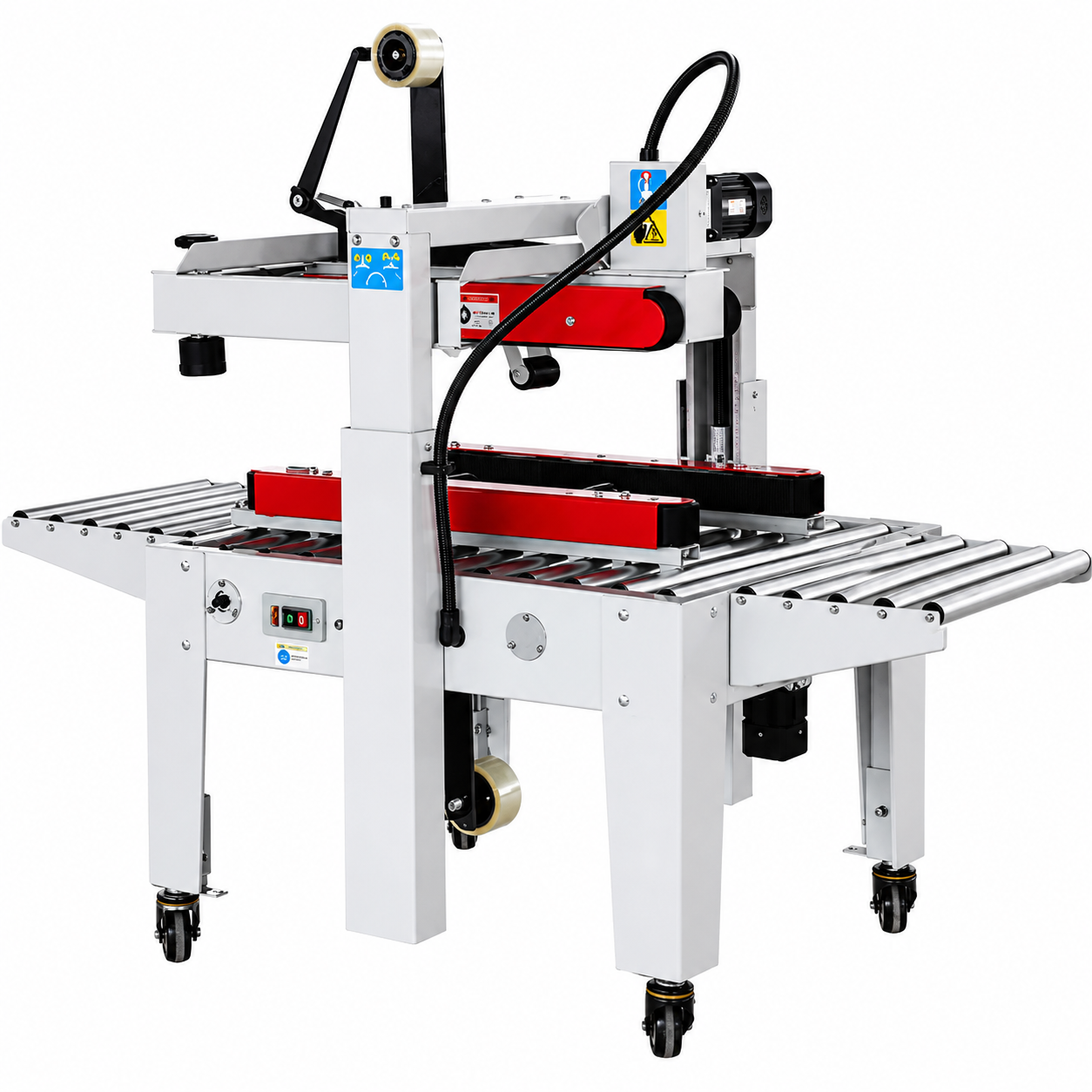

Description This series is designed to seal carton by applying adhesive tape. Cost effective, High speed. Easy size changeovers. For integration into production line or as stand alone machine. It's widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry. Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons. This model have three-sides drive belts, upper&bottom tape head, ideally suited for heavy cartons.
Specifications
| MODEL | FPCS-5050B |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 270 |
| Max. Carton Size (W×H)(mm) | 500×500 |
| Min. Carton Size (W×H)(mm) | 130×120 |
| Speed (m/min) | 20 m/min (30 cartons/min) |
| Adhesive Tape Materials | BOPP, PVCadhesive tape, water-free adhesive tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (L×W× H)(mm) | 1730×950×(960-1550) |
| Net Weight (kg) | 125 |
| Max. Conveyor Load(kg) | 30 |
