Product information
What to know about this model

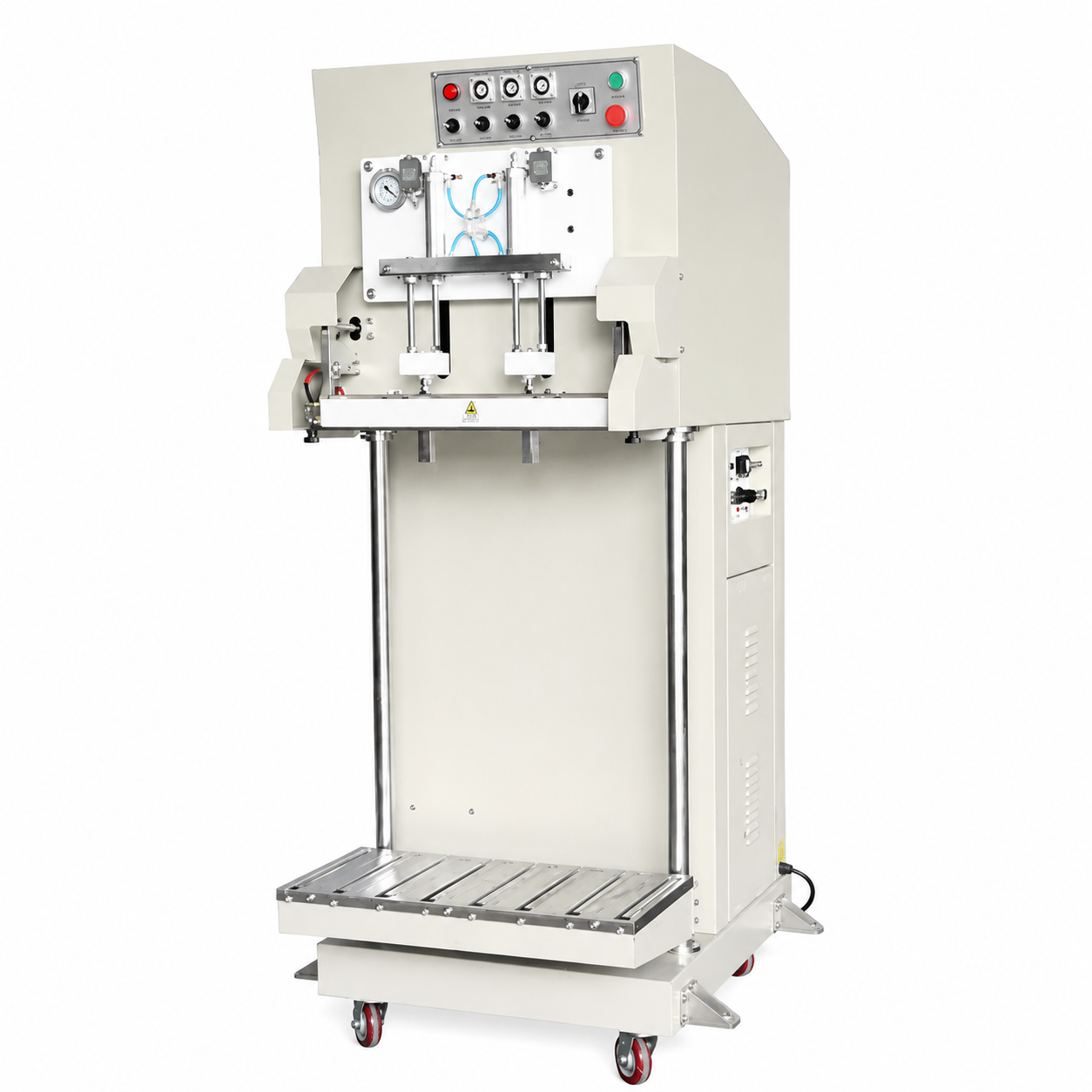

Description Muti-functional vacuum gas flushing packaging machine, are multi-functional, both for vacuum sealing and for gas flushing vacuum sealing. Due to chamber-less design with double nozzles, the application is wide for low demands of vacuum percentage but high of inserting gas purity.
Features
- With pedal switch
- Equipping with any conveyor you want
- Available for production line
- Available for customization
- Special for thick or compound bags
- Helix subside filter for powder products
Application
- Muti-functional vacuum gas flushing packaging machine is applied to seal bags such as M-fold PE heavy film bags, aluminum foil composite bags, PE inner film bags lined with woven bags, etc.
- The machine is widely used in the chemical industry, foodstuff, feedstuff industries.
- To use in the place where there is enough space, such as factory and warehouse, etc.
Technical Specifications
| Model | DZQ-600L | DZQ-600L/S |
|---|---|---|
| Voltage (V/Hz) | AC 380/50 220/50 | |
| Motor power (W) | 750 | |
| Sealing Power (W) | 500 | 800 |
| Air Compressor Power (W) | 600 | |
| Sealing Length (mm) | 600 | 600 |
| Sealing Width (mm) | 10 or 2×5 or 3+cut-off | 10 or 2×5 |
| Machine Weight | 90 kgs | 90 kgs |
| Distance from Sealing Center to Floor (mm) | 1250 | 1250 |
| Vacuum Pump Capacity (m³/h) | 20 | 20 |
| Film Thickness (Single Layer) (mm) | ≤ 0.12 | ≤ 0.18 |
| External Dimensions (L×W×H) (mm) | 980×945×1900 | |
| Net Weight (kg) | Approx. 225 | |
