Product information
What to know about this model

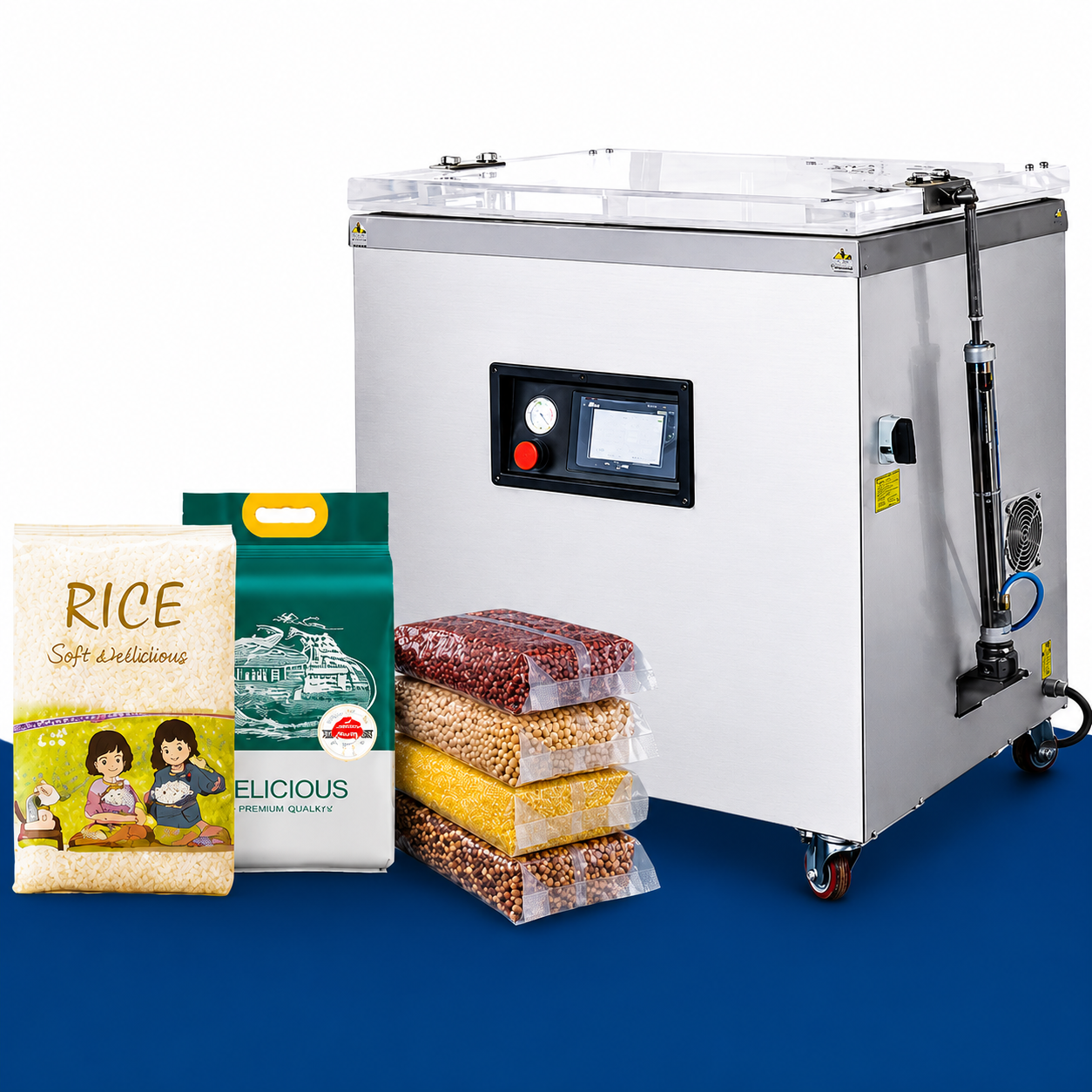

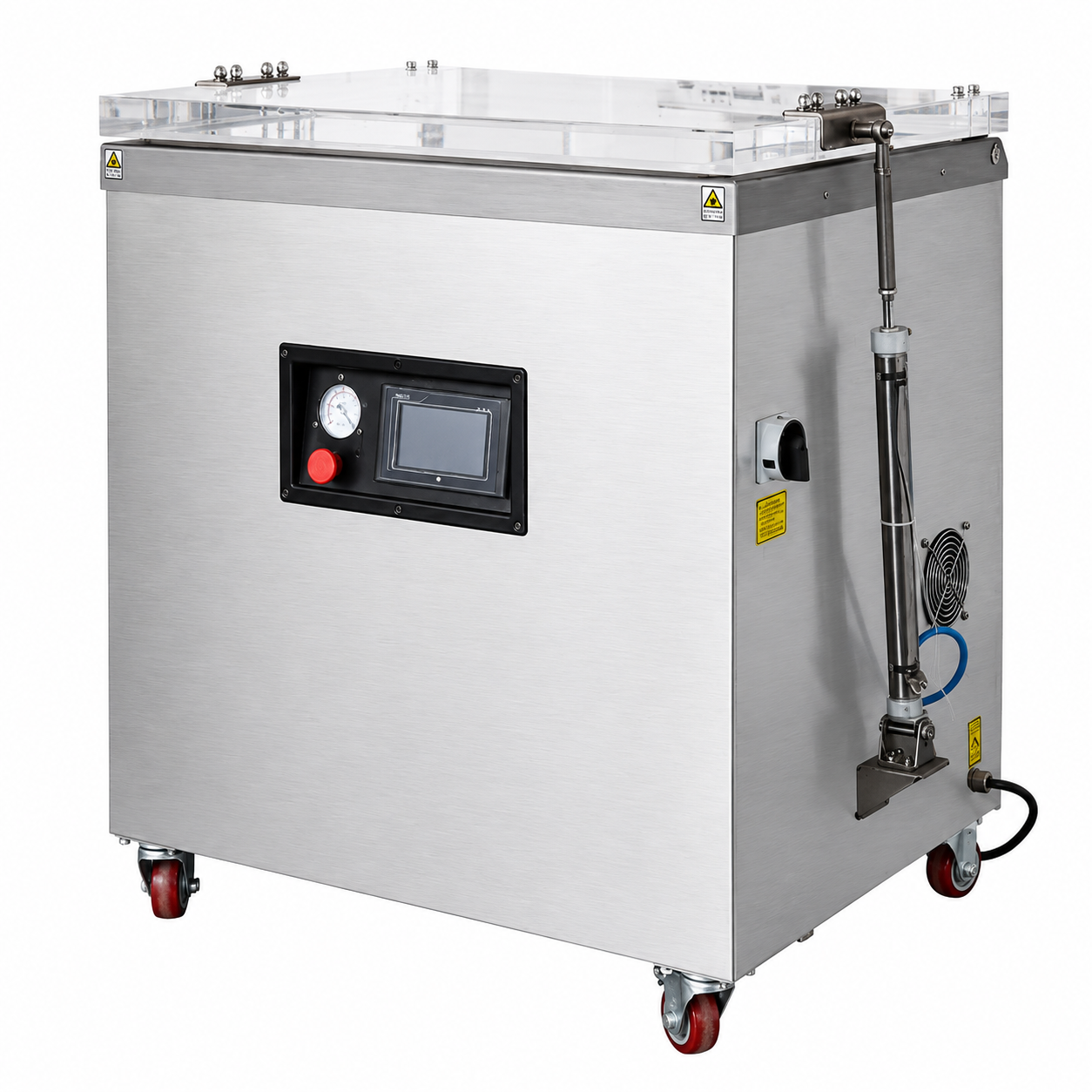

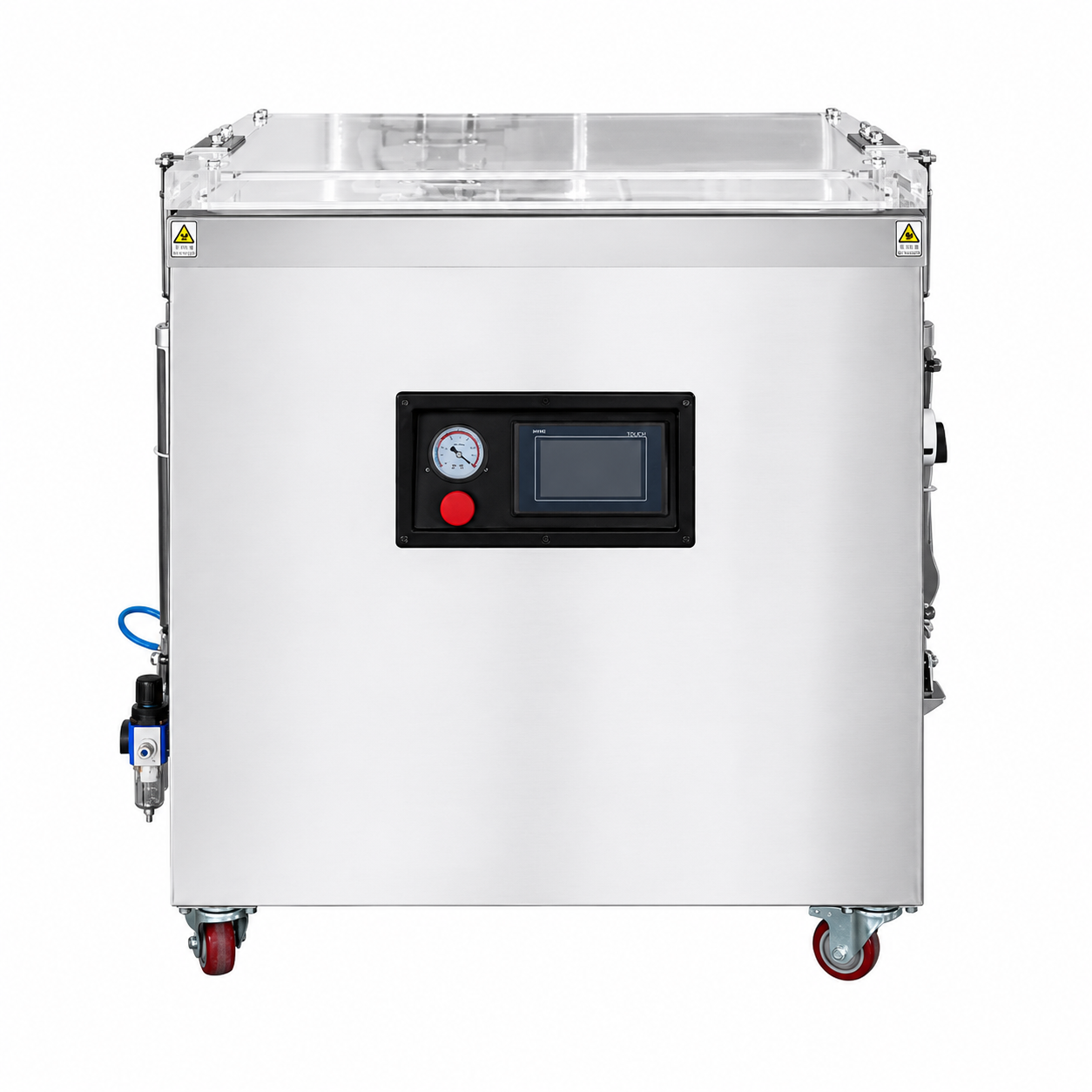

Description 1. No need for molds to shape and flatten both sides of the packaging bag.Controlled via touchscreen, with parameters clearly displayed for easy setup and operation. 2. Equipped with a 40m3/h vacuum pump for fast evacuation and low ultimate vacuum level. 3. Utilizes a 40mm thick acrylic glass cover for monitoring the entire vacuum and shaping process. 4. The shaping function can be toggled on or off according to the packaging requirements, and when off, it can function as a conventional vacuum packaging machine. 5. The vibration platform can be easily removed, converting it into a large vacuum packaging machine with a depth of up to 300mm, suitable for packaging large items.
Specifications
| MODEL | HVC-650F/1D |
|---|---|
| Voltage (V/Hz) | AC 380/50 |
| Motor power (W) | 1100 |
| Sealing Power (W) | 500 |
| Sealing Length (mm) | 650 |
| Sealing Width (mm) | 10 or 5 or 2\*3 |
| Ultimate Vacuum Pressure (Kpa) | 1 |
| Thickness of the material | 25-80 |
| Chamber Dimension (L×W×H) (mm) | 740\*567\*83 |
| Vacuum Pump Capacity (m3/h) | 40 |
| Material for Vacuum Chamber | SUS304 |
| External Dimensions (L×W×H) (mm) | 1012\*705\*995 |
| Net Weight (Kg) | Approx. 220 |
