Product Overview

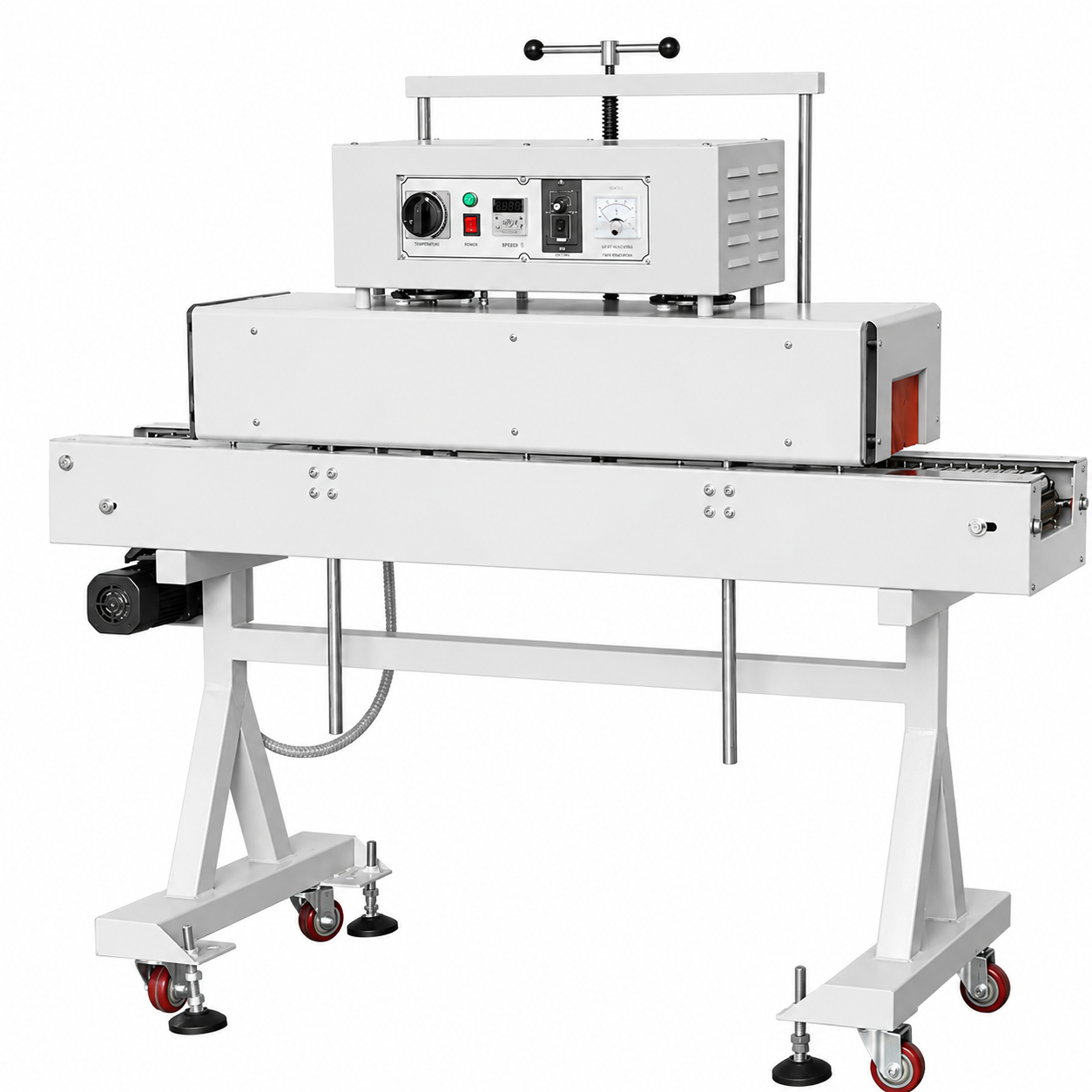

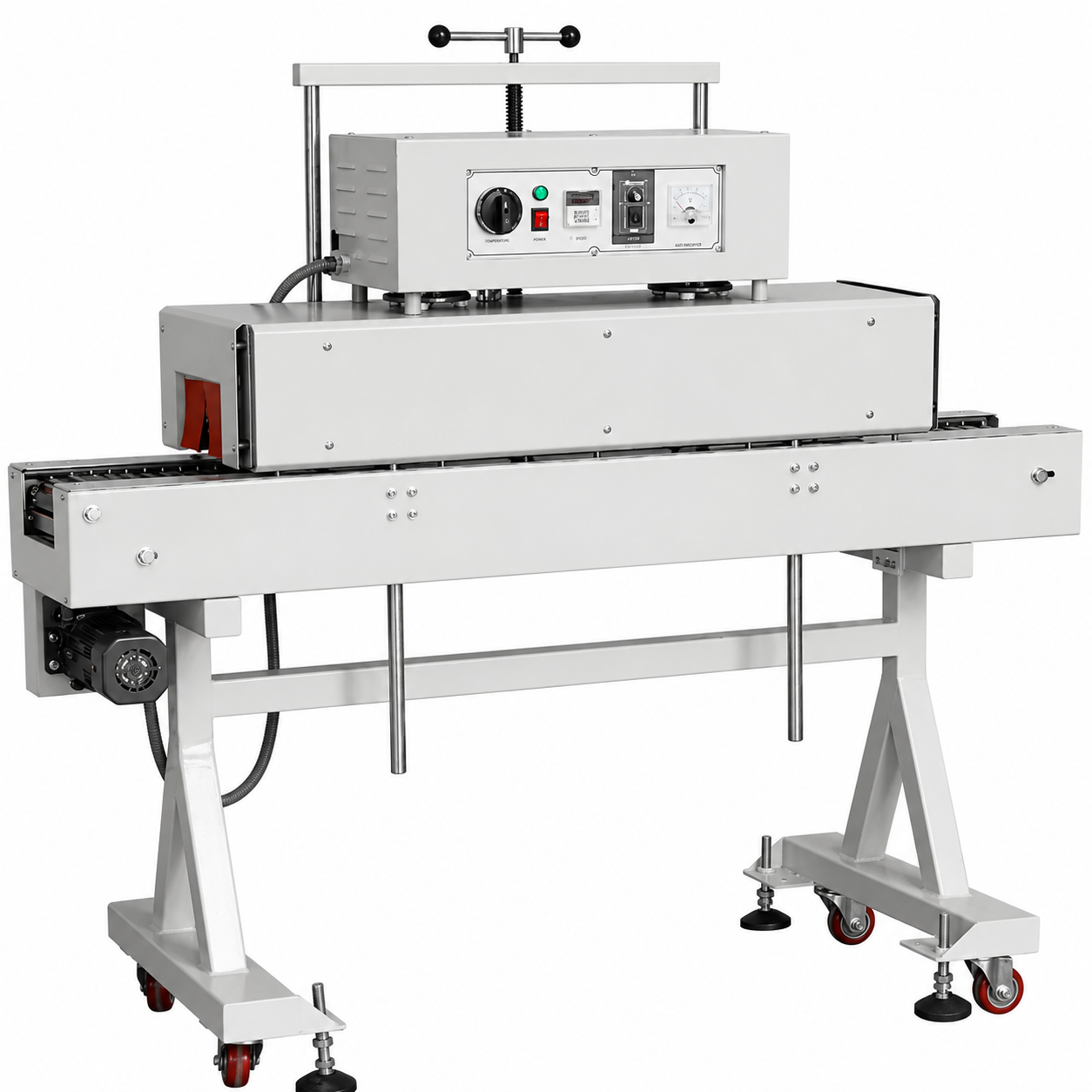

The FPSW-1510G label shrink tunnel adopts hot air circulating shrinkage, shrinking for the body as well as the cap of bottles.
Key Features
- Adopts imported parts and stainless-steel heaters
- Conveying speed is controlled by a stepless electronic speed controller
- Only heats the cap of the bottle, ensuring product quality inside the bottle
- Two low-power blowing motors with turbo air blowing keep the label in position and free of corrugation after shrinking
- Can heat only part of the tunnel for products with special requirements, to save energy
- Can be connected to the production line
- Adjusts simply to suit all kinds of bottles
Application
- The BS-1510G series shrink tunnel is applied to heat shrinkable film such as PVC, PE, etc.
- For shrink wrapping containers such as bottles, jars and cups
- For use in places with restricted space, such as a small factory, monopolisation shop or laboratory, in the foodstuff, beverage, pharmacy, cosmetics and pesticide industries
Specifications
| Model | FPSW-1510G |
|---|---|
| Voltage (V/Hz) | 380/50 (3P) or 220/60 (3P) |
| Power | 7 kw |
| Conveying Speed | 0-10 m/min |
| Max. Packing Diameter | 120mm |
| Max. Packing Height | 400mm |
| External Dimension (L×W×H) | 1530×500×1450 mm |
| Net Weight | 90kg |
