Product information
What to know about this model
Product Overview

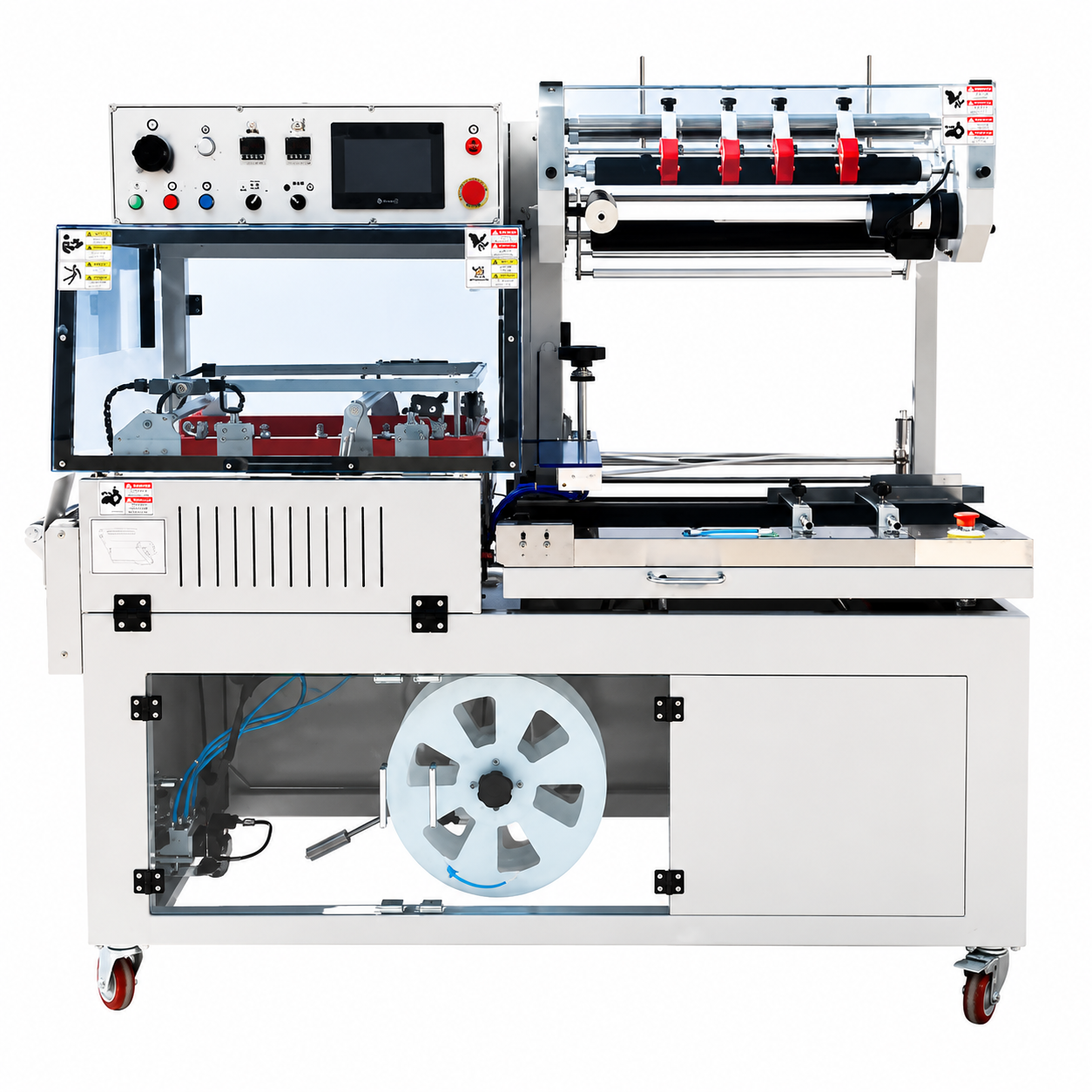

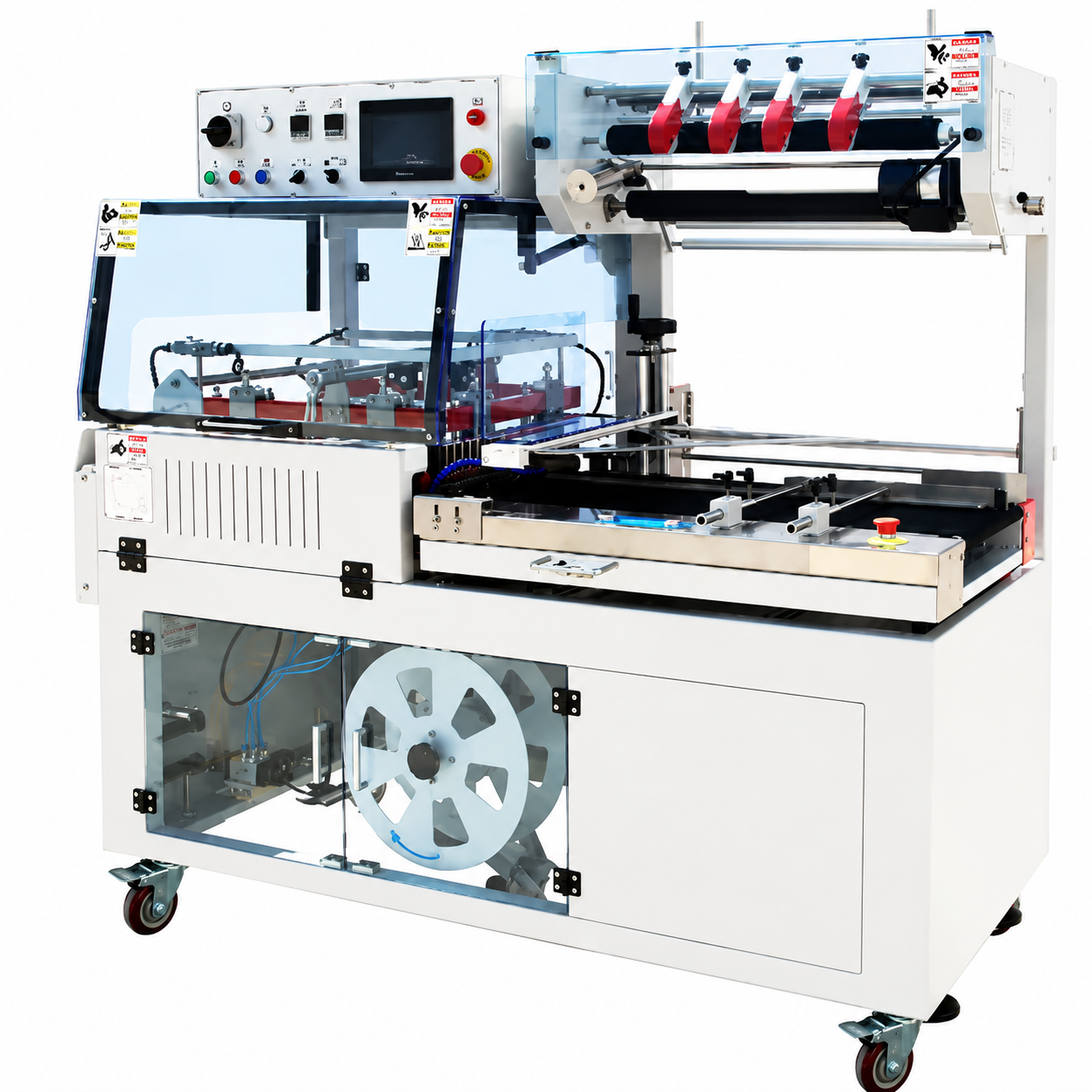

Automatic L Bar Sealer is mainly applied to film wrapping for different products, which has the advantages of dustproof, damp-proof and beautiful sealing.
Key Features
- Widely applied to different kinds of products
- The economical model which is the best choice for getting started with an automatic sealer
- Equipped with safety protection cover and alarm device
- Automatic feeding, whose length can be automatically adjusted by a combination of sensor and timer
- Perforator device can be flexibly adjusted
- Design of brush is for permanent use
- Sealing temperature is controlled by PID system
- Integrated L shaped sealing blades coated with Teflon
Application
- BSF-5640LG Automatic L Bar Sealer is applied to heat shrinkable film such as PVC, PE, etc.
- It is suitable for single and combination packages such as cookies, books, CDs, glassware, tissue, paper card, photo frame, aluminum section, woodwork, etc.
- To use in a place with enough space, such as a factory or warehouse
Specifications
| MODEL | FP LSA -5640LG |
|---|---|
| Voltage (V/Hz) | 220V 50/60HZ |
| Air Pressure Required (kg/cm³) | 6-8 |
| Power (kw) | 1.8 |
| Capacity (PCS/min) | 0-30 |
| Max. Packing Size (mm) | L≤400，W≤350，H≤130，W+H≤420，L+H≤500 |
| Max. Sealing & Cutting Size (L×H) (mm) | 500×400 |
| External Dimension (L×W×H) (mm) | 1790×830×1600 |
| Load (kg) | 0-20 |
| Net Weight (kg) | 400 |
