Product information
What to know about this model

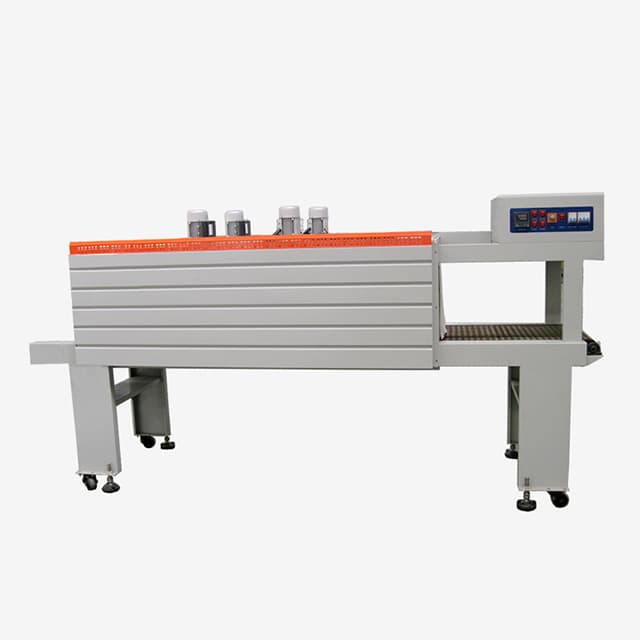

Description This shrink tunnel adopts hot-wind & down-cyclone structure, intelligence temperature control and AC variable speed regulation. There are two optional conveyors, including Teflon belt type and roller type.
Features
- Manual regulation of conveyor height
- Double adjustable air flap
- Single independent heating room
- Emergency off switch
Application
- Applied to heat shrinkable film such as PVC, PE etc.
- To shrink wrap several products, such as food, beverage, cosmetics, presswork and toys, etc.
- To use in the place where there is restriction on space, such as small factory, monopolization shop, and laboratory, etc.
Specifications
| MODEL | 3020A |
|---|---|
| Voltage (V/Hz) | 220/50 380/50(3PH) 220/60(3PH) |
| Power (kw) | 5.1 |
| Loading (kg) | 10 |
| Speed (m/min) | 0~10 |
| Tunnel Size (L×W×H)(mm) | 900×300×(50-200) |
| External Dimensions(L×W×H)(mm) | 1200×500×1050 |
| Net Weight(kg) | 60 |
