Product information
What to know about this model

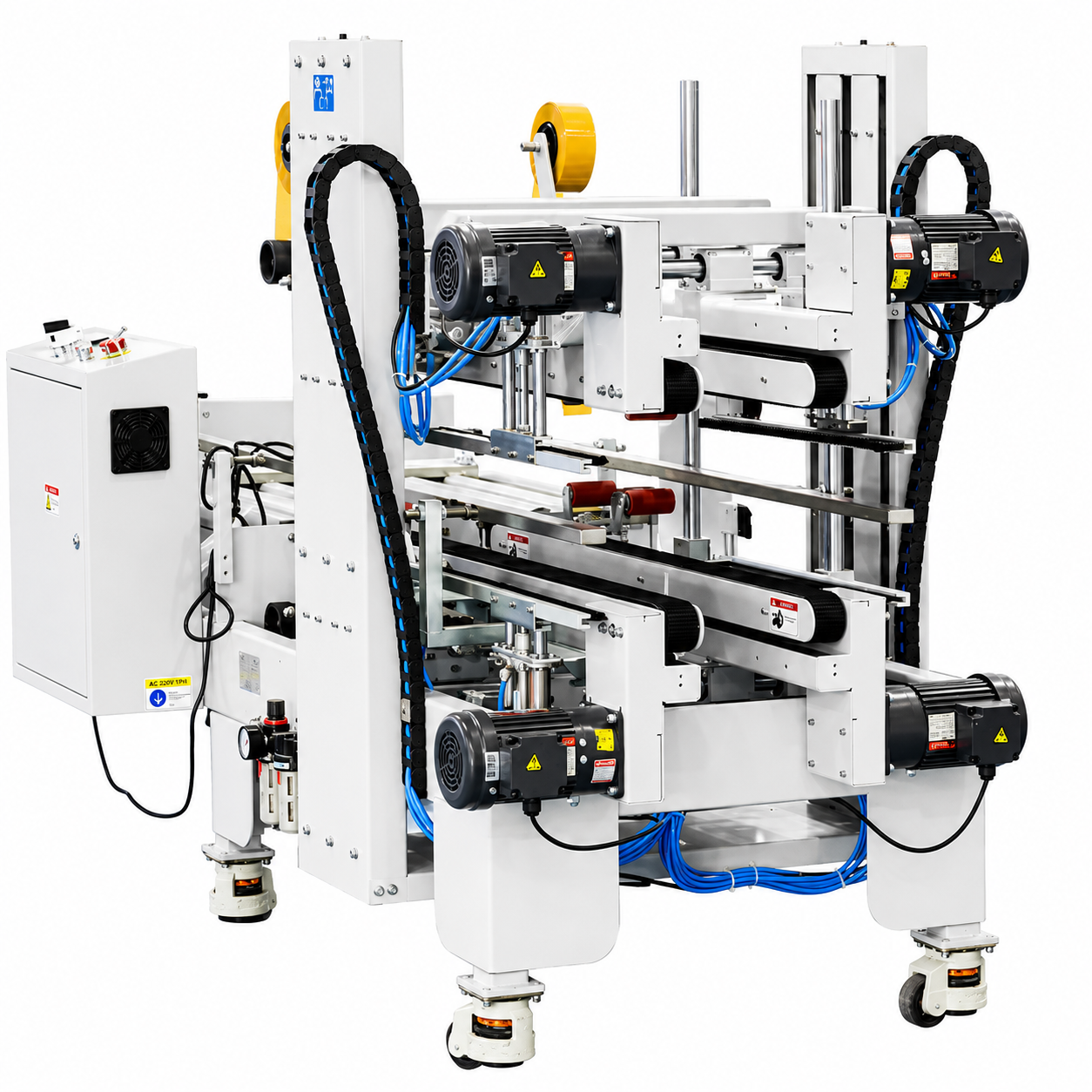

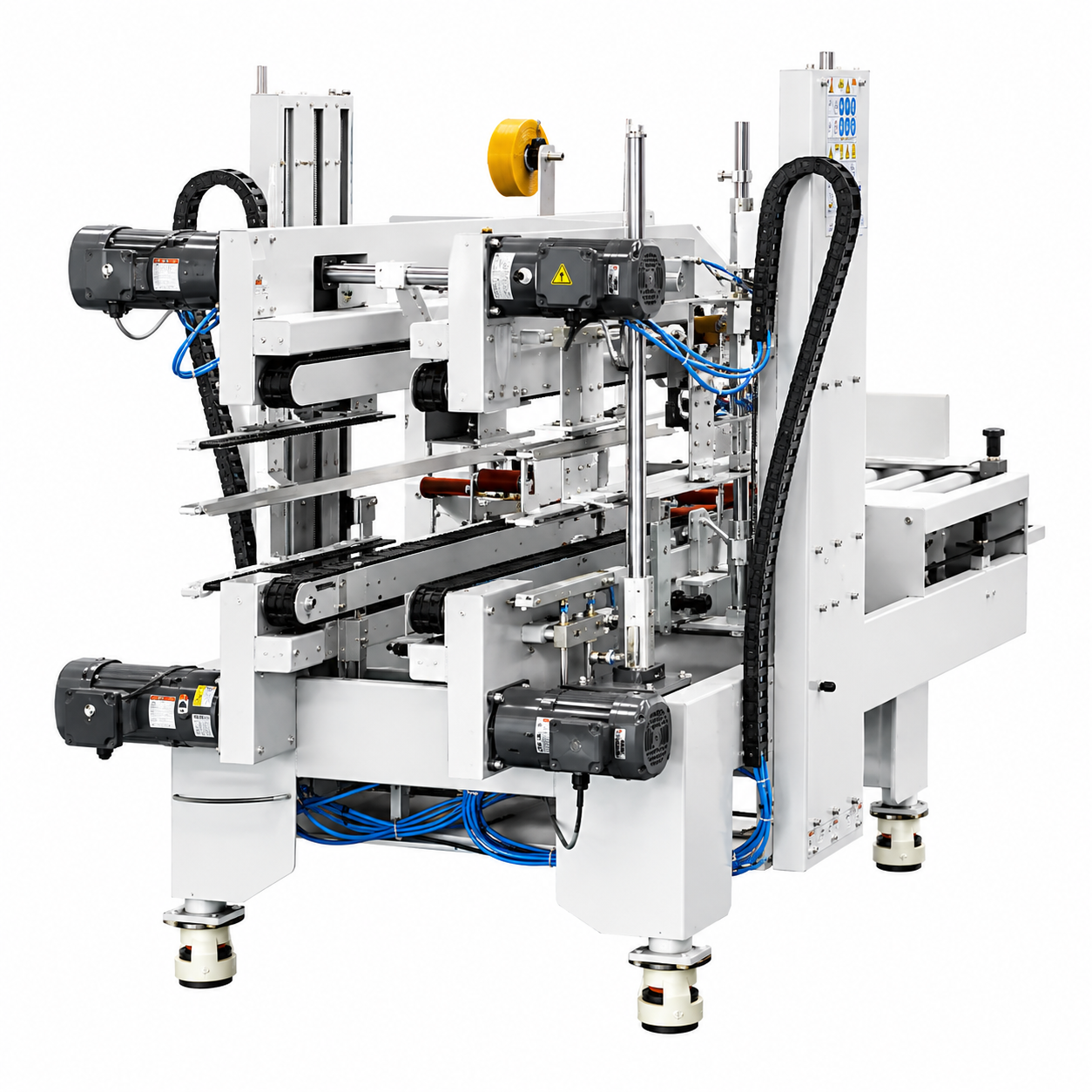

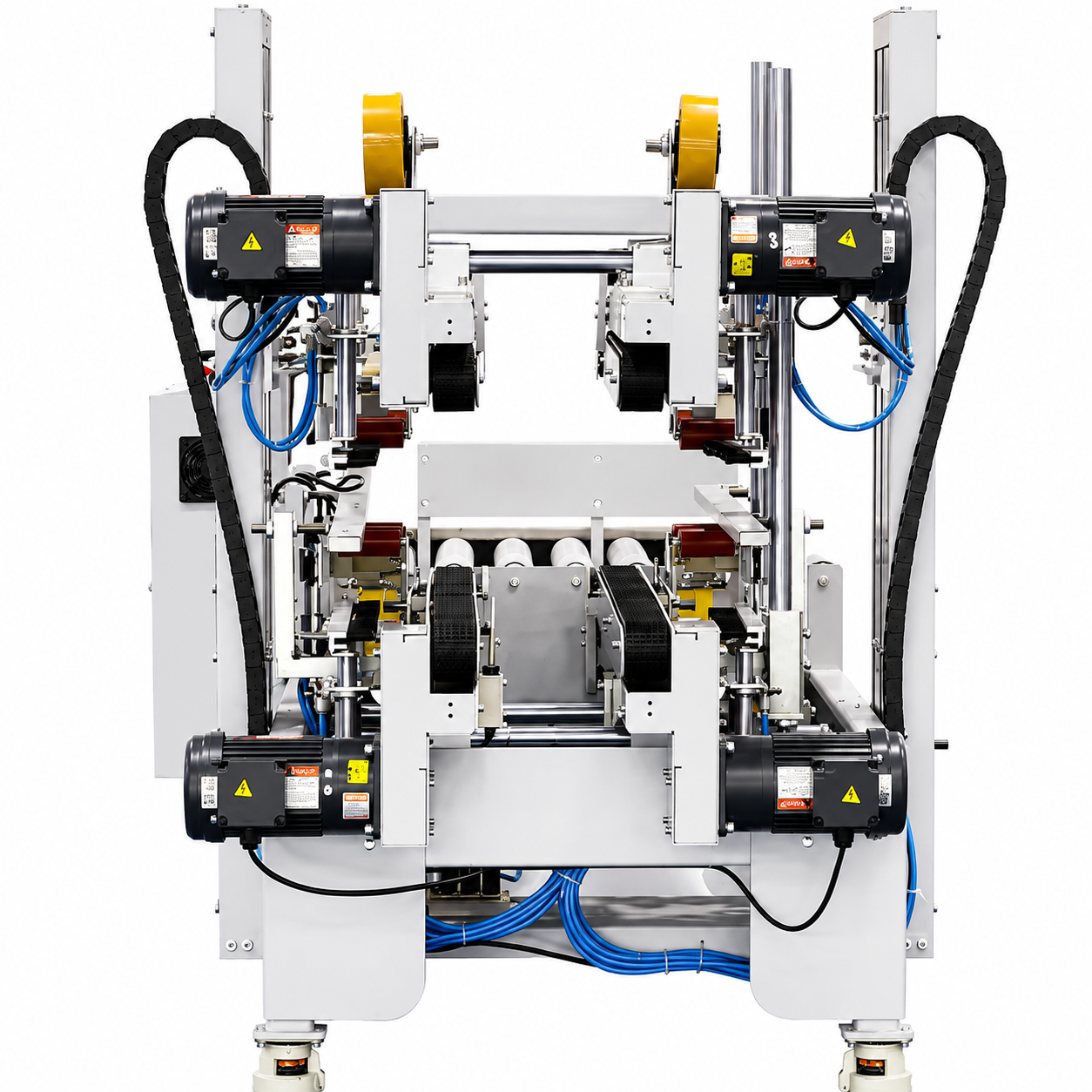

Description: JFX series edges carton sealer is designed to seal the edges of top and bottom flaps by applying adhesive tape. Cost effective, high speed. Easy size changeoverst is especially ideal for applications that require high degree of leak-proofness. For integration into carton sealer to form unmanned production line or as stand alone machine.
Specifications
| MODEL | FPFX-5050B |
|---|---|
| Voltage (V/Hz) | AC 380/50 220/50 110/60 |
| Power (W) | 1100 |
| Air Compressor (Mpa) | 0.5-0.6 |
| Min. Carton Size (L×W×H)(mm) | 320×200×180 |
| Max. Carton Size (L×W×H)(mm) | 500×500×500 |
| Sealing Speed (m/min) | 5-10 ( as reference) |
| Type of Adhesive Tape | Bopp, water-free adhesive tape, PVC adhesive tape |
| Width of Adhesive Tape (mm) | 60, 76 (optional) |
| Package Weight (kg) | 2.5-30 |
| External Dimensions (L×W× H)(mm) | 1955×1060×1510 |
| Height of Table (mm) | 650-750 |
| Net Weight (kg) | 400 |
| Max. Conveyor Load(kg) | 30 |
