Product information
What to know about this model

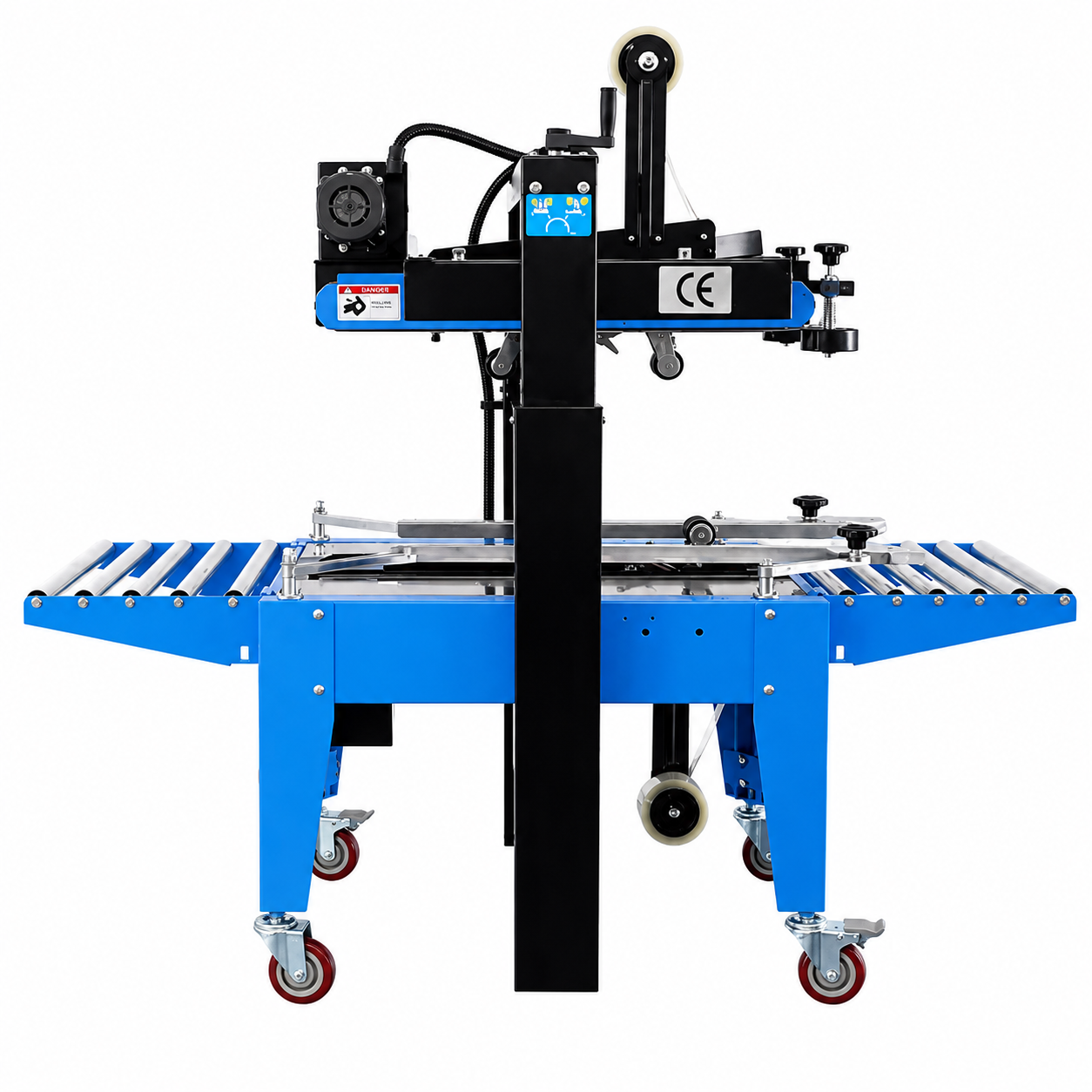

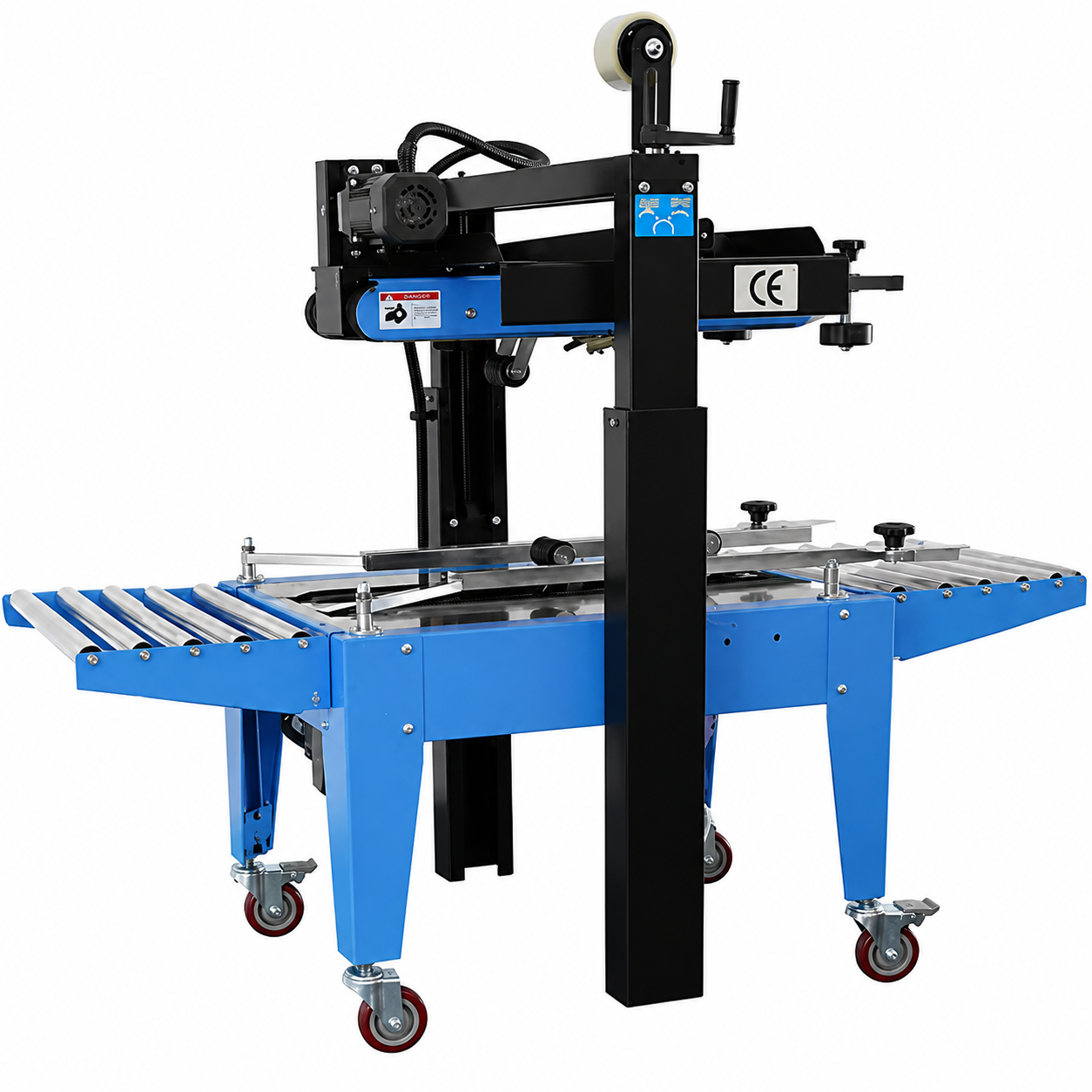

Description: This model is designed to seal carton by applying adhesive tape. Cost effective, High speed. Easy size changeovers. For integration into production line or as stand alone machine. It's widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry. Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons. Printed tape can be used to improve enterprise image. Model 6050: top and bottom drive belts, used in circumstance where cartons size is not changed frequently, especially ideal for sealing uniform and high cartons.
Specifications
| MODEL | FXJ-6050C |
|---|---|
| Voltage (V/Hz) | AC 220/110V, 50/60Hz |
| Power (W) | 200 |
| Max. Carton Size (W×H×L) (mm) | 500×600×∞ |
| Min. Carton Size (W×H×L) (mm) | 180×130×150 |
| Speed (m/min) | 20 m/min |
| Adhesive Tape Materials | Water-free tape, BOPP, PVC |
| Height of Table (mm) | 635-780 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (L×W×H) (mm) | 1520×790 (960-1650) |
| Net Weight (kg) | 150 |
| Transmission form | Upper and lower conveyor belt drive |
