Product information
What to know about this model

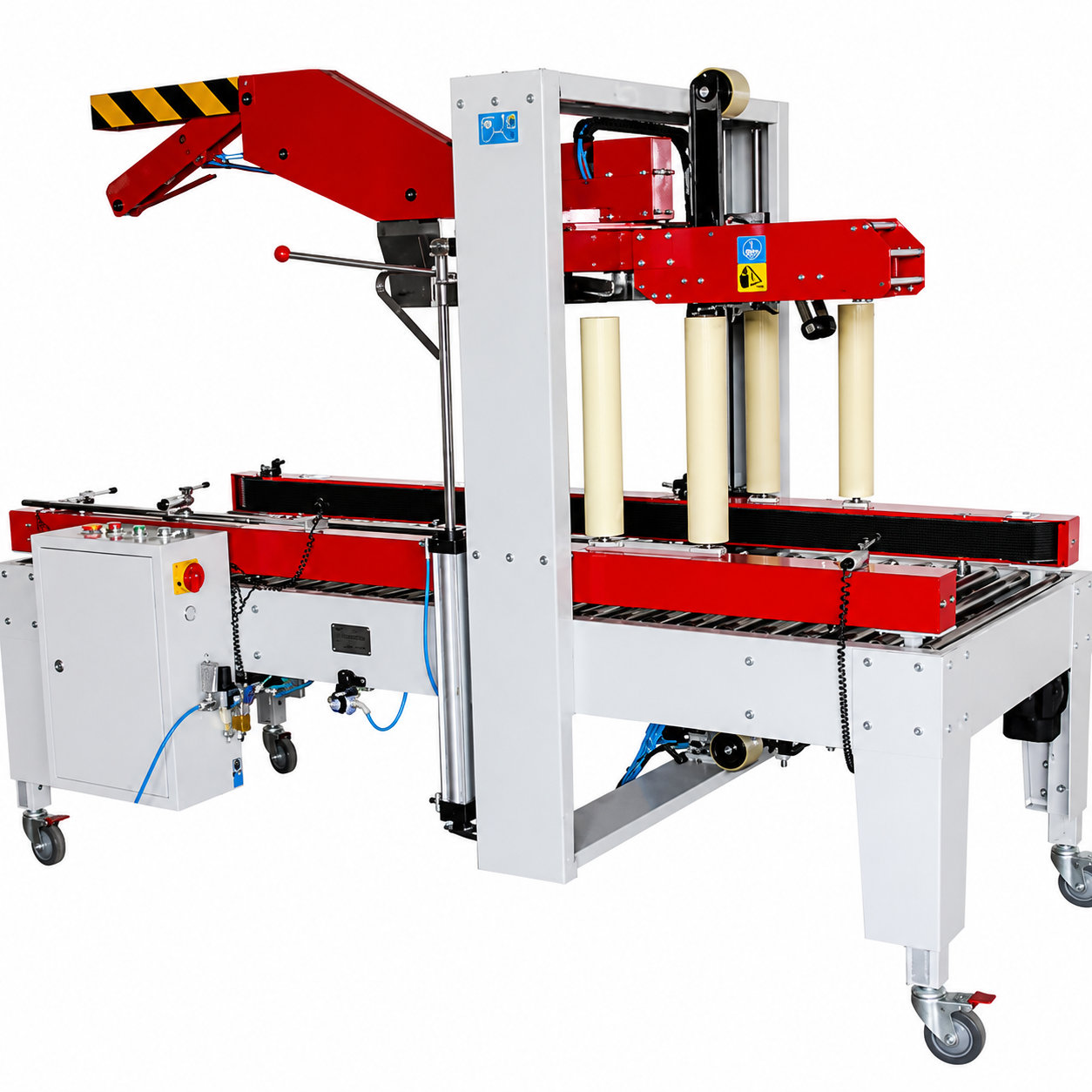

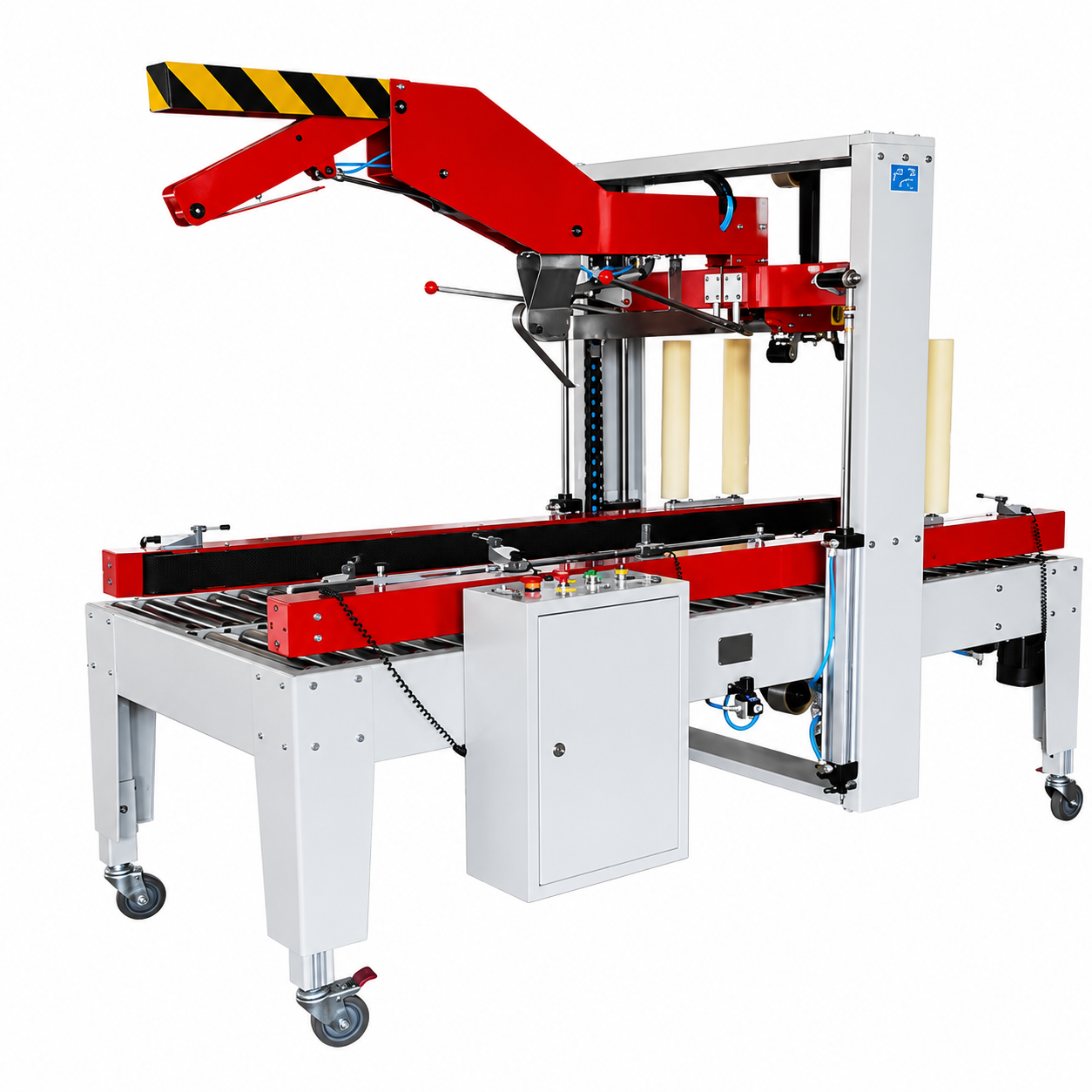

Description The structure is simple and easy to adjust. Driven by side belts, upper and bottom tape head can seal the carton at the same time. The carton front flap, side flap and back flap can be folded automatically, fast and smoothly. By adopting mechanical-electrical integration technology, the machine can adjust the carton width, height and other parameters automatically. It is suitable for a variety of automatic production sites.
Specifications
| MODEL | FPCS-5050ZQ |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Air Compressor (Mpa) | 0.4-0.6 |
| Speed (m/min) | 22 |
| Max. Carton Size (L×W×H)(mm) | 600×500×500 |
| Min. Carton Size (L×W×H)(mm) | 250×150×180 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 660-840 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (L×W× H)(mm) | 2270×1030×(1705-1945) |
| Net Weight (kg) | 280 |
| Max. Conveyor Load(kg) | 30 |
