Product information
What to know about this model
Product Overview

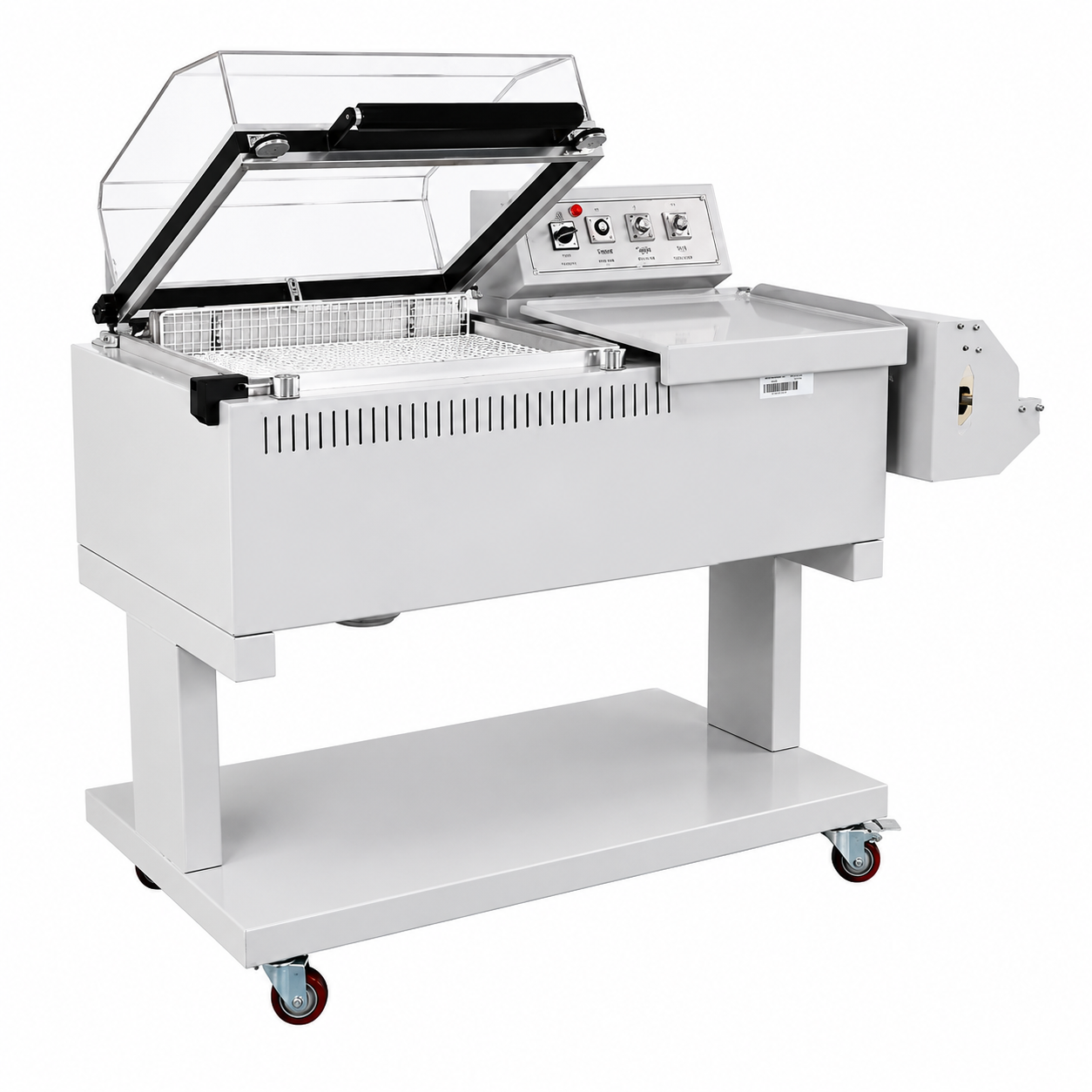

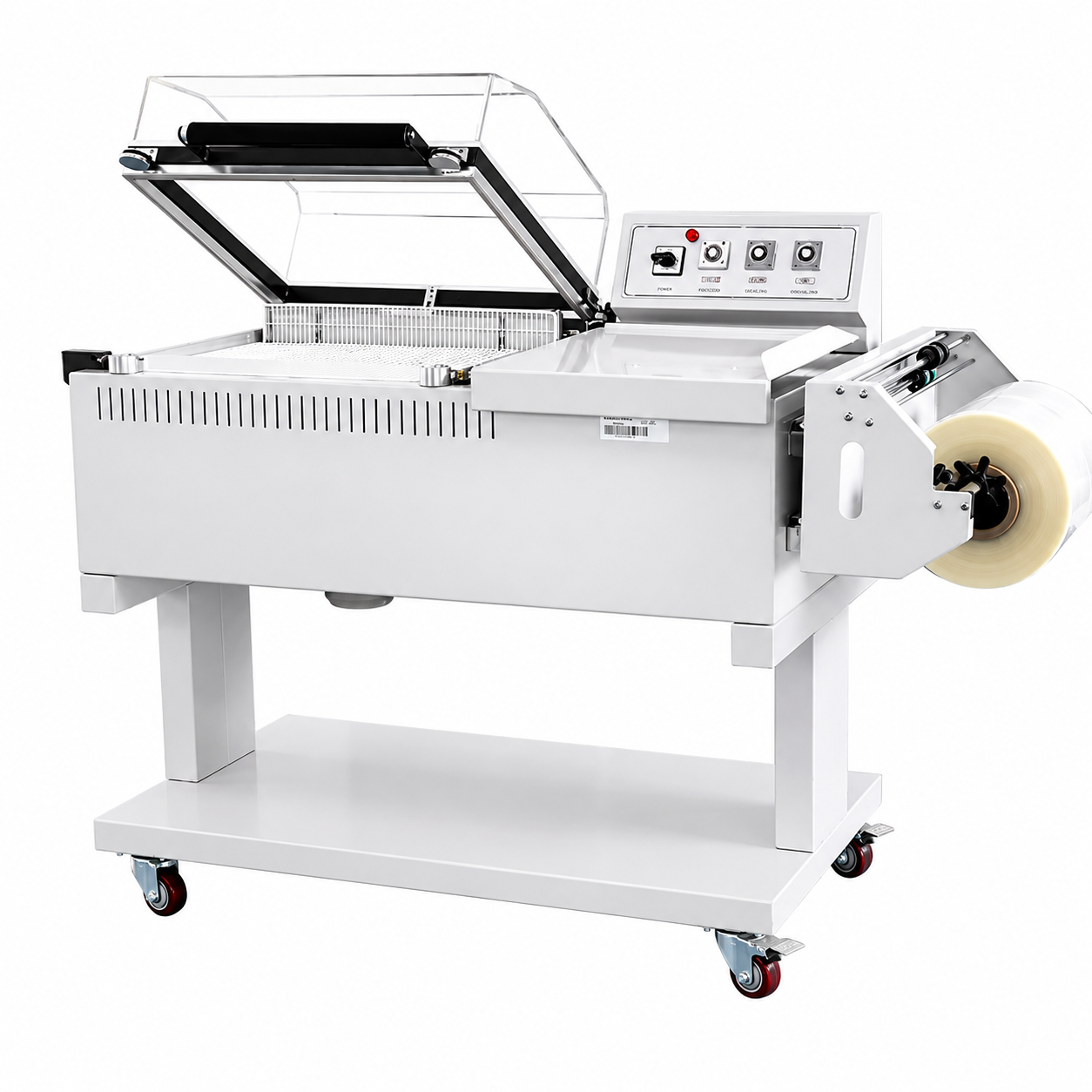

The L-seal hood shrink packaging machine combines sealing with shrinking into one step, and the transparent cover makes the sealing, cutting and shrinking process visible. It is equipped with a height-adjustable stainless steel conveying mesh.
Key Features
- Perfect sealing without cracking or coking, using a nano-fibre cutter holder and anti-sticking thermo-stable nichrome cutter
- Specially-designed roller with a pin to produce small holes in the film to release air
- Adjustable sliding film support according to the size of the packing object
- Low power consumption, only 2.5kw/hour on average
- Thermo-stable and durable plastic cutter clip
- Adjustable package support inside the chamber to meet different product sizes
- Can be moved or fixed freely, with brakes fitted to the bottom of the supporting base
- Can be operated continuously for a long time without overheating the ambient environment
Application
- The L-seal hood shrink packaging machine is applied to heat shrinkable film such as PVC, PE, etc.
- Widely applied for outer shrink packing of products such as foodstuff, beverage, pharmacy, video disc, hardware, cosmetics, books, toys and electronic products
- For use in places with restricted space, such as a small factory, monopolisation shop or laboratory
Specifications
| MODEL | BSF-5540 |
|---|---|
| Voltage (V/Hz) | AC 220/50 |
| Power (Kw) | 4 |
| Packing Speed (pcs/h) | 500-800 |
| Max. Packing Size (L×W×H)(mm) | W+H≤450，W≤380，L≤500，H≤100 |
| Max. Sealing & Cutting Size (L×W×H)(mm) | 550×400 |
| External Dimensions (L×W×H)(mm) | 1380×690×1065 |
| Net Weight (Kg) | 125 |
