Product information
What to know about this model

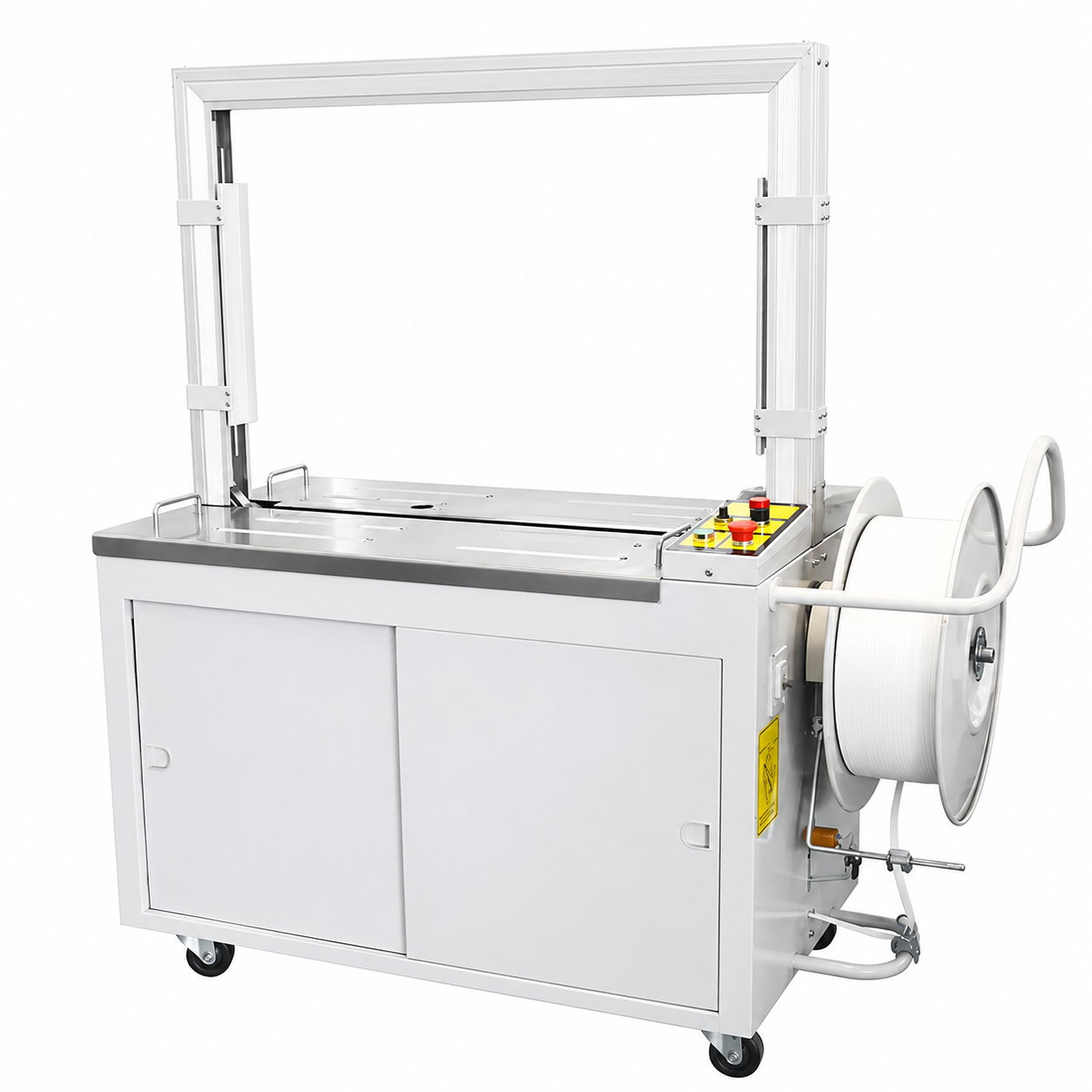

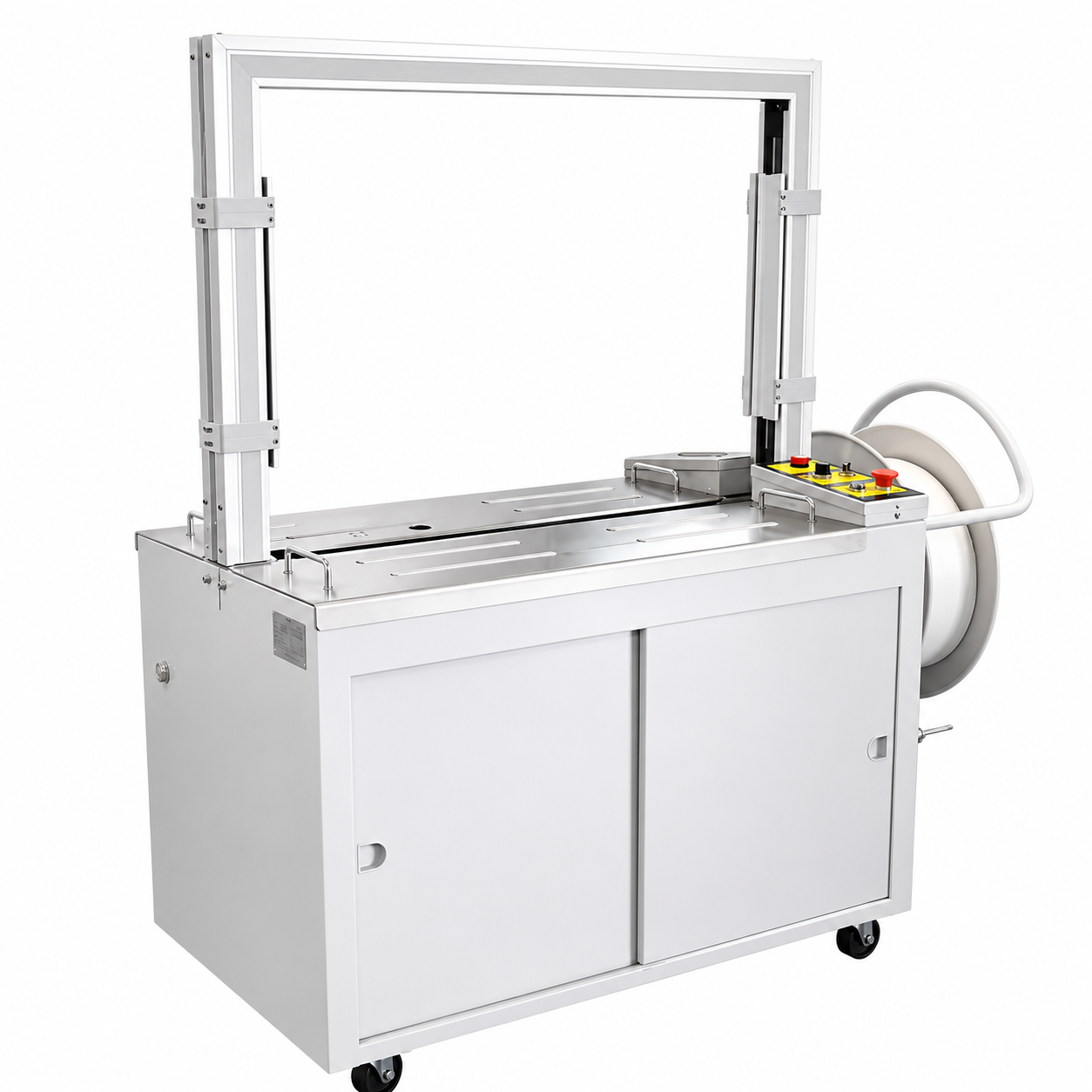

Description High-table automatic strapping machineadopt film, durable, efficient KZ mechanism as main body, human-machine interface, PLC and fully digital manipulation to ensure easy size changeover and stable running. Due to special design of strap feeding and withdrawal track, more straps are applicable and packing cost is lowered greatly,Oil-free maintenance, firm strapping, high speed and long use life. It can be single-unit operation or equipped onto the production line.
Specifications
| MODEL | FP STA-8060/D |
|---|---|
| Voltage (V/Hz) | AC 380/50 220/60 3Phase |
| Power (W) | 1000 |
| Bundle Size(Maximum)(W×H) (mm) | 700\*600/800\*500 |
| Strapping Speed (sec/cycle) | ≤2.5 |
| Strapping Force (V/hz) (N) | 25-700 (Adjustable) |
| Height of Table (mm) | 750 |
| Suitable For Plastic Bag(mm) | Machine Packaging Hand Width 9-15, thickness 0.5-1.1 |
| External Dimensions (L×W× H)(mm) | 1400×620×1470 |
| Net Weight (kg) | 190 |
| Max.Loading Weight(kg) | 30 |
