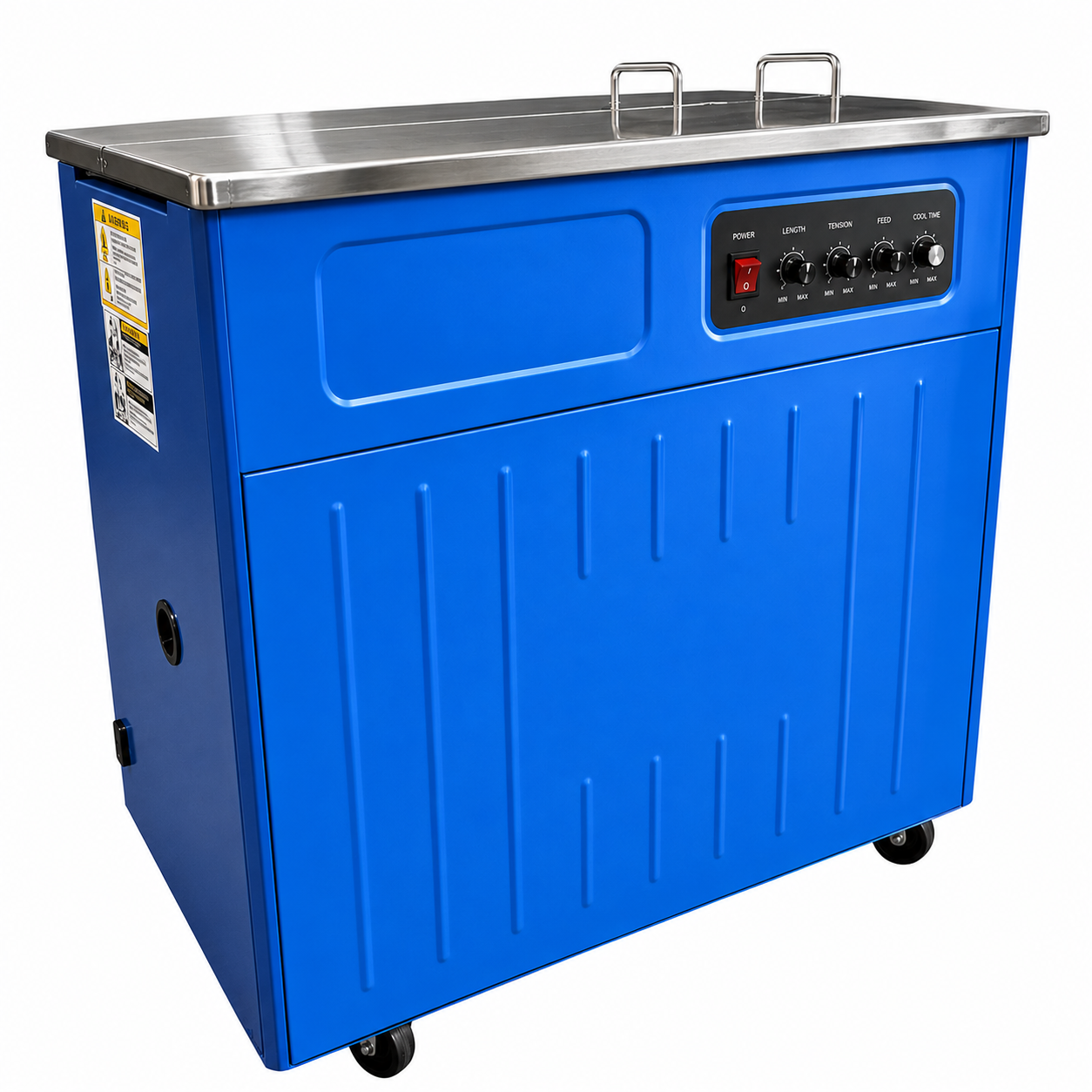

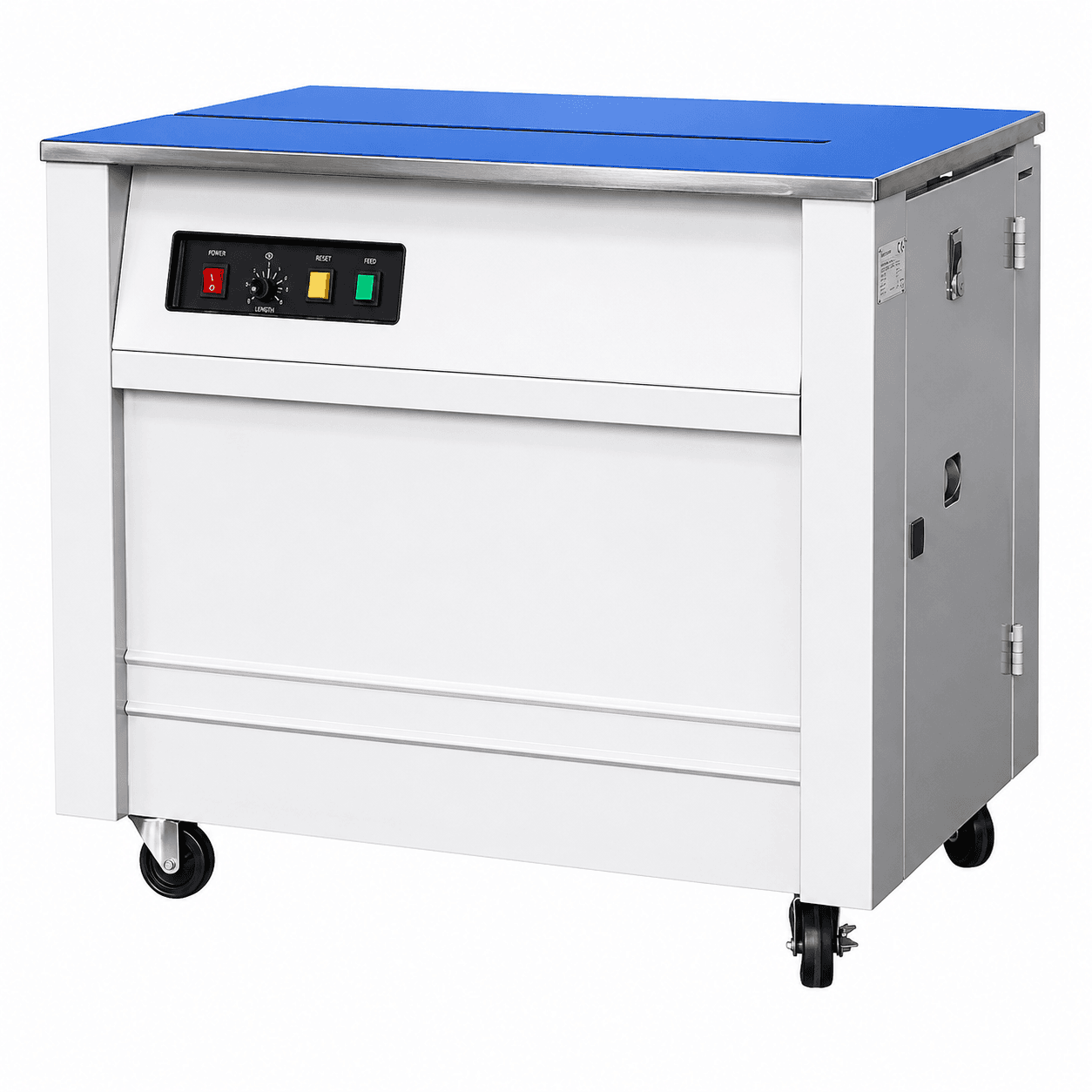

Product information
What to know about this model
Features
- Compact strapping head (circular cutter, the width of the heating plate is 15 mm)
- Soft strapping, tension range 3–45 kg
- 24V DC motor with main power switch; safety switch is optional
- Heating head with transformer is optional and can extend usage life
Specifications
| Power Supply | 110V, 220V, 230V 50/60Hz 1PH 0.25kW |
|---|---|
| Tension Range | 3–45 kg |
| Packing Speed | ≤3 seconds/strap |
| Applicable PP Strap | Width 5–15 mm, thickness 0.5–0.85 mm |
| Applicable PP Strap Spool | Inner dia. 200–210 mm, outer dia. 400–500 mm, width 160–190 mm |
| Working Table Height | 750 mm (optional 750–920 mm adjustable) |
| Machine Dimension | L840×W545×H750mm, N.W. 70 kg |
| Packing Measurement | L860×W550×H840mm, G.W. 80 kg |
