Product information
What to know about this model

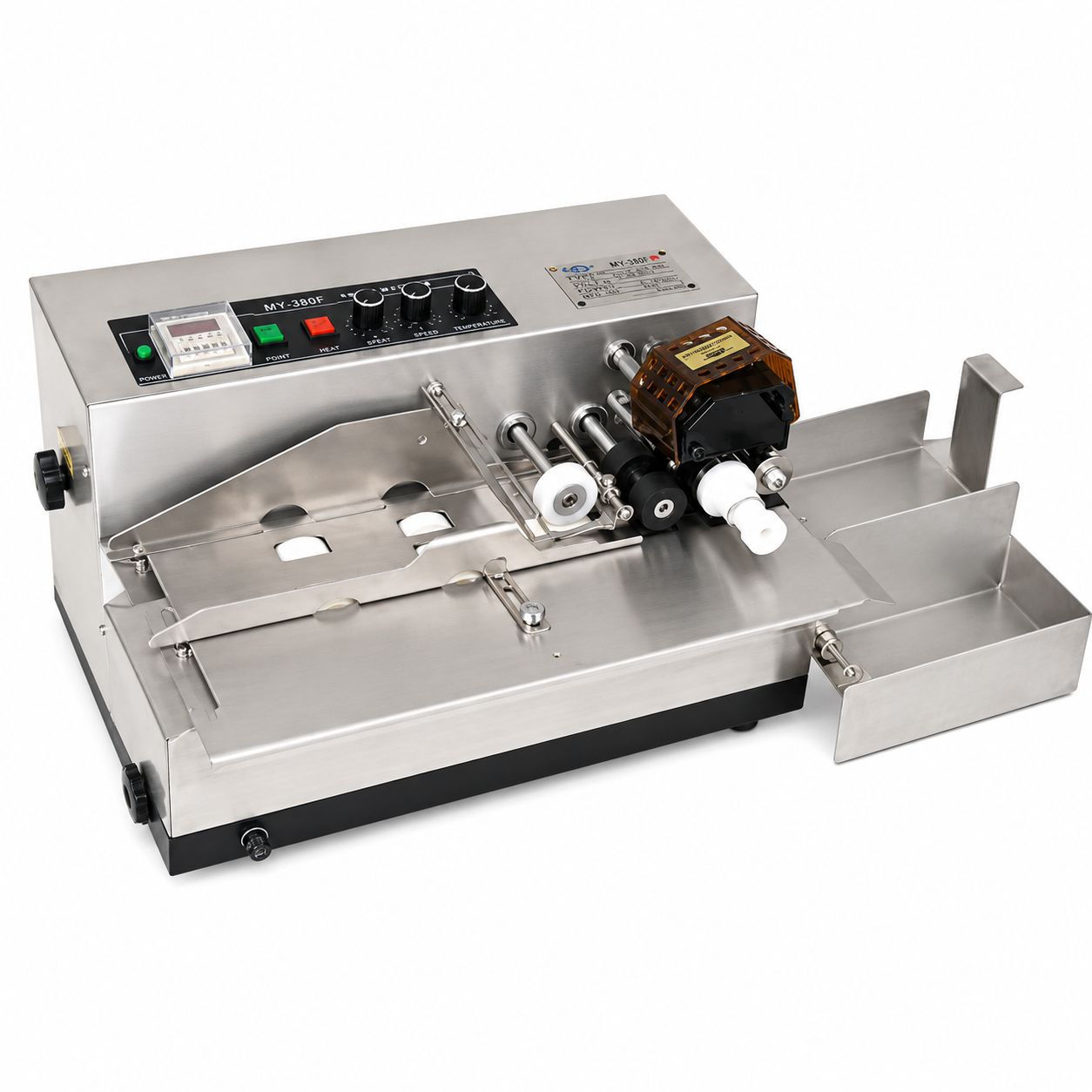

The MY-380F Solid Ink Coding Machine is an automatic batch coding machine designed to print manufacturing date, expiry date, batch number, lot number, MRP, and other variable information on labels, pouches, cartons, paper, plastic films, and aluminum foil. It uses solid ink rollers, producing clear, fast-drying, smudge-resistant prints with excellent adhesion. The machine is widely used in food, pharmaceutical, cosmetic, chemical, and FMCG industries. It features automatic feeding, photoelectric sensing, temperature control, auto-counting, and adjustable print position for efficient and reliable operation.
Features
- Automatic feeding and coding operation
- Solid ink roller printing technology
- Clear, instant-dry, and durable prints
- Adjustable printing position
- Photoelectric sensor for accurate coding
- Automatic temperature control
- Built-in production counter
- Low maintenance and easy operation
- Suitable for labels, cartons, pouches, films, and foil packaging materials
Specifications
| MODEL | MY-380F |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 180 |
| Solid Ink Roller (mm) | 35×32 |
| Printing Speed (pcs/min) | ≤300 |
| Object Size (mm) | L: 50–500, W: 30–190 |
| Max. Printing Line | T type (10.5PT): 11 lines (max. 10 characters/line); R type (10.5PT): 8 lines (max. 11 characters/line) |
| Printing Size (mm) | Single side 60–250 |
| Type Size (mm) | 2.5×1.5 (8PT), 2×2.5 (9PT), 3×2 (10.5PT), 5×2.5 (18PT) |
| External Dimensions (L×W×H) (mm) | 440×345×260 |
| Net Weight (Kg) | 23 |
