Product information
What to know about this model

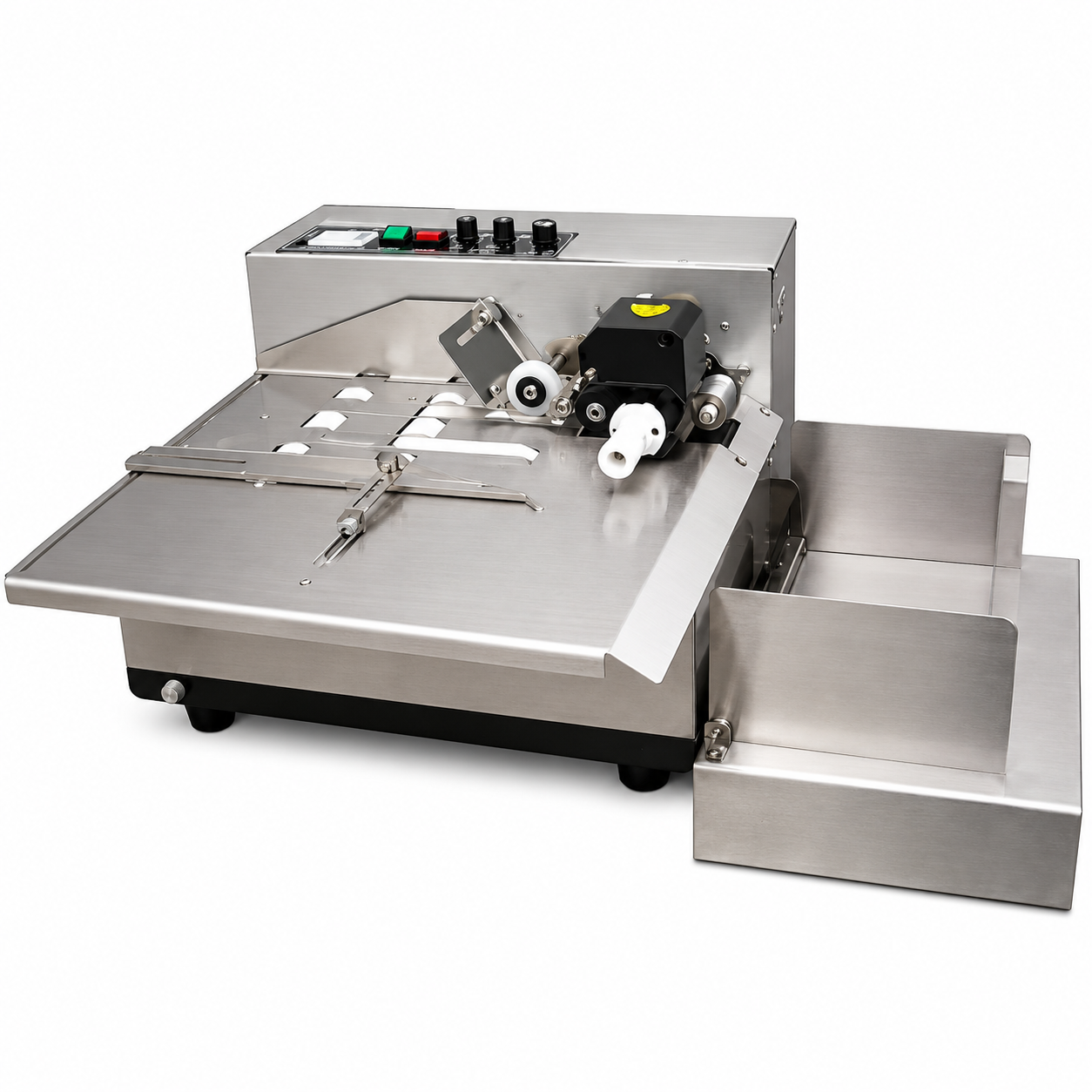

The MY-380FW is a fully automatic solid ink coding machine designed for printing manufacturing dates, expiry dates, batch numbers, lot numbers, MRP, and other variable information on labels, pouches, cartons, paper, plastic films, and aluminum foil packaging materials. It uses a hot solid ink roller that produces clear, instant-dry, smudge-resistant prints with strong adhesion and low operating costs.

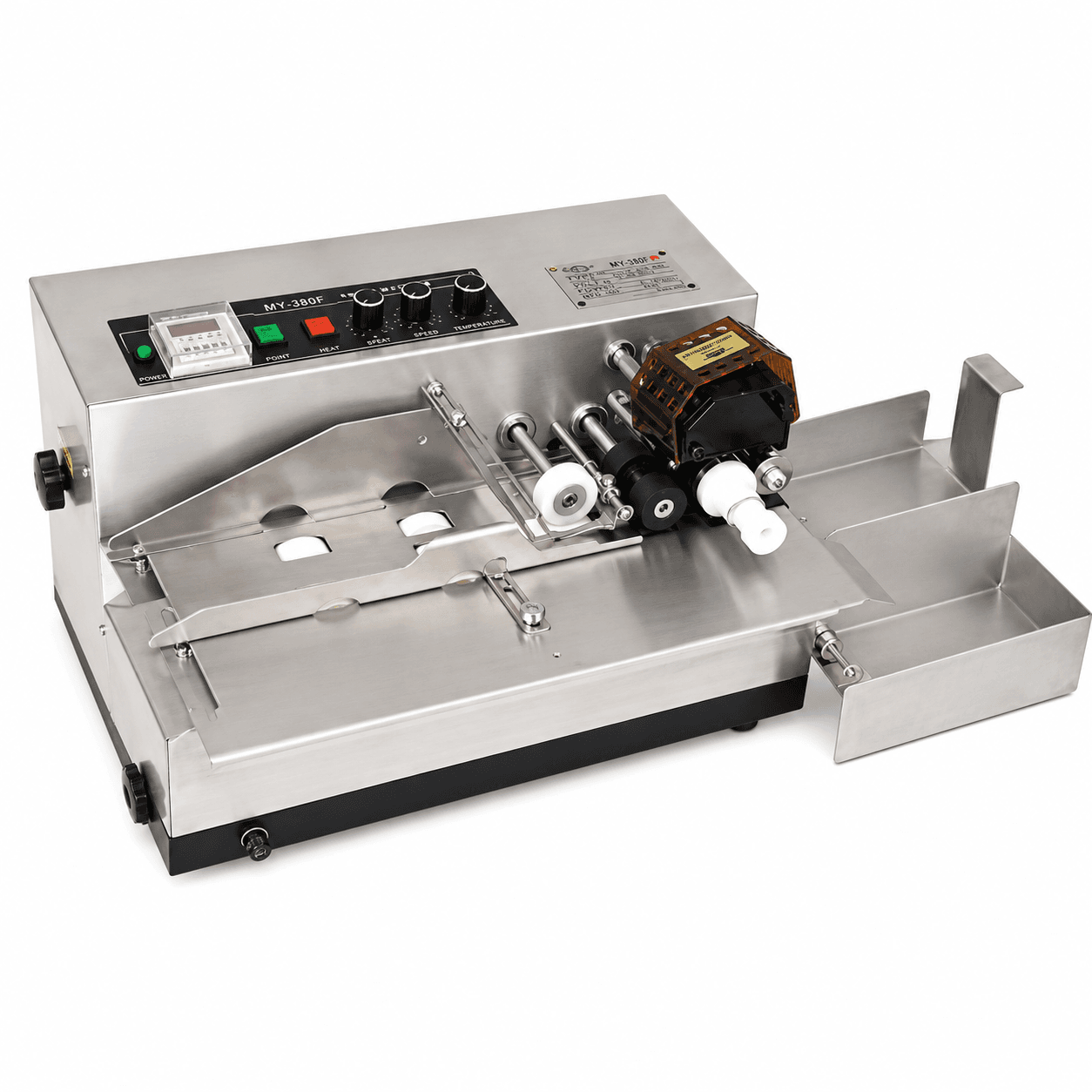

The machine features automatic feeding, counting, temperature control, and high-speed operation, making it ideal for continuous production environments. The print position can be adjusted easily, and multiple font sizes are available to suit different coding requirements. With printing speeds of up to 300 pieces per minute, the MY-380F/W is widely used in food, pharmaceutical, cosmetic, pesticide, and FMCG industries.
Benefits
- Low coding cost per print
- High production efficiency
- Easy operation and maintenance
- Reliable performance for continuous use
- Strong ink adhesion and long-lasting print quality
Applications
Used for printing MFG Date, EXP Date, Batch No., Lot No., MRP, and Serial Numbers on:
- Food and spice pouches
- Tea and coffee packets
- Pharmaceutical labels
- Cosmetic packaging
- Plastic bags and laminated pouches
- Paper cartons and labels
Specifications
| MODEL | MY-380FW |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 180 |
| Solid Ink Roller (mm) | 35×32 |
| Printing Speed (pcs/min) | ≤300 |
| Object Size (mm) | L: 50–500, W: 30–190 |
| Max. Printing Line | T type (10.5PT): 11 lines (max. 10 characters/line); R type (10.5PT): 8 lines (max. 11 characters/line) |
| Printing Size (mm) | Single side 60–250 |
| Type Size (mm) | 2.5×1.5 (8PT), 2×2.5 (9PT), 3×2 (10.5PT), 5×2.5 (18PT) |
| External Dimensions (L×W×H) (mm) | 440×345×260 |
| Net Weight (Kg) | 23 |
