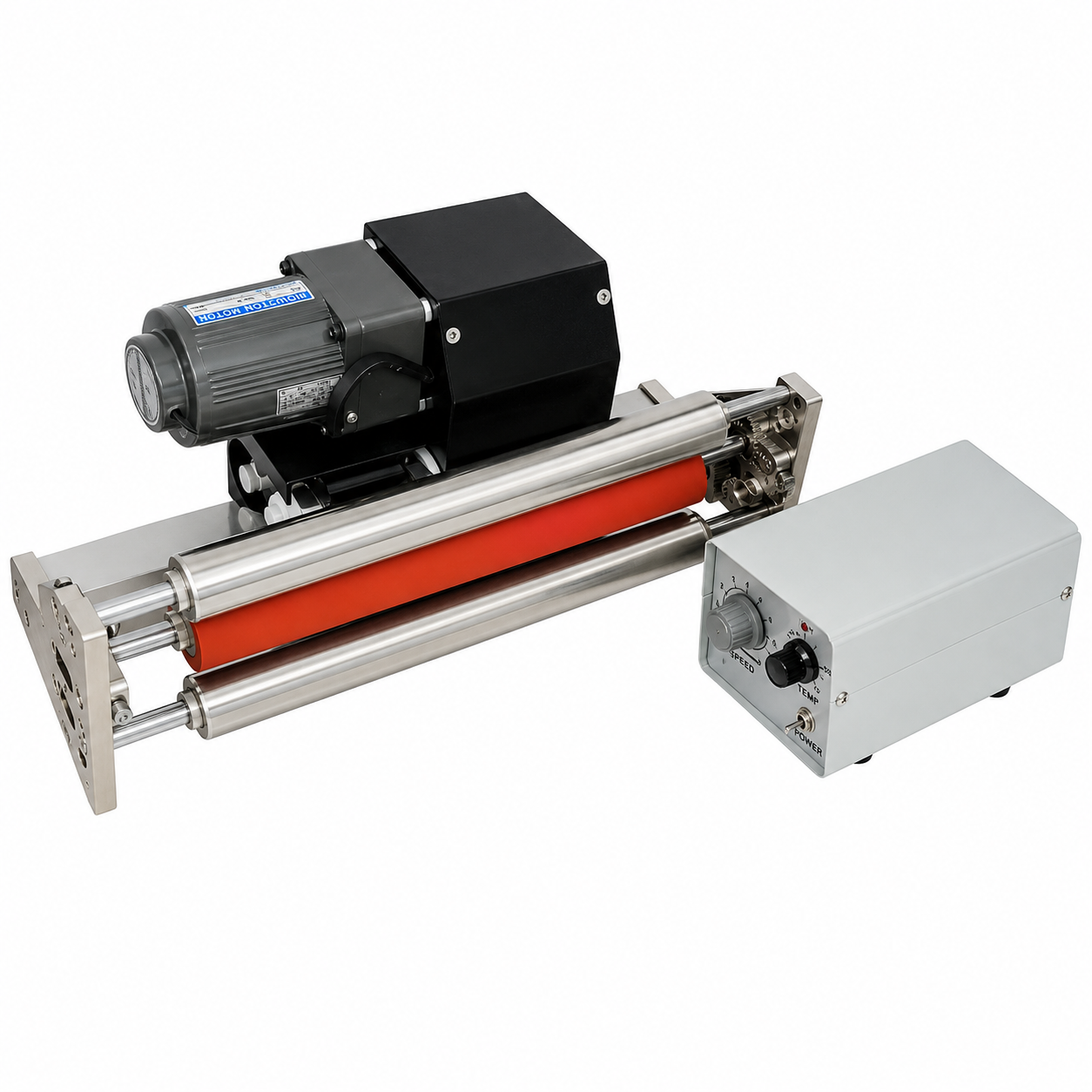

Model: MY-812A
Product Description
Adopts stepper motor, steady in quality, long usage life. Automatically traces the packing speed so the print speed can keep pace with it.
- Removable print head and special word-change structure, so the characters are easy to install and replace.
- Dual-use print wheel, suitable for both R type and T type arrangements.
Applications
- Suitable for all kinds of horizontal and vertical continuous packing machines to automatically print production date, lot number and other related information.
Max. Printing Line (by printing wheel)
- 180° printing wheel: T type (10.5PT): 11 lines (max. 10 characters/line) · R type (10.5PT): 8 lines (max. 11 characters/line)
- 120° printing wheel: T type (10.5PT): 7 lines (max. 10 characters/line) · R type (10.5PT): 8 lines (max. 7 characters/line)
- 90° printing wheel: T type (10.5PT): 4 lines (max. 10 characters/line) · R type (10.5PT): 8 lines (max. 4 characters/line)
Frame Width Options
| Parameter | 400 mm Frame | 500 mm Frame | 600 mm Frame |
|---|---|---|---|
| Max. film width (mm) | 280 | 380 | 480 |
| Max. horizontal adjusting size for printer (mm) | 170 | 270 | 370 |
| Net weight (kg) | 11 | 12 | 13 |
Specifications
| Model | MY-812A |
|---|---|
| Voltage (V/Hz) | 220/50 110/60 |
| Power (W) | 150 |
| Max. Printing Speed (pcs/min) | 300 |
| Size of Character (height) (mm) | 2×1.5 (8PT), 2.5×2 (9PT), 3×3 (10.5PT) |
| Size of Solid-ink Roller (mm) | ф35×32 |
