Product information
What to know about this model

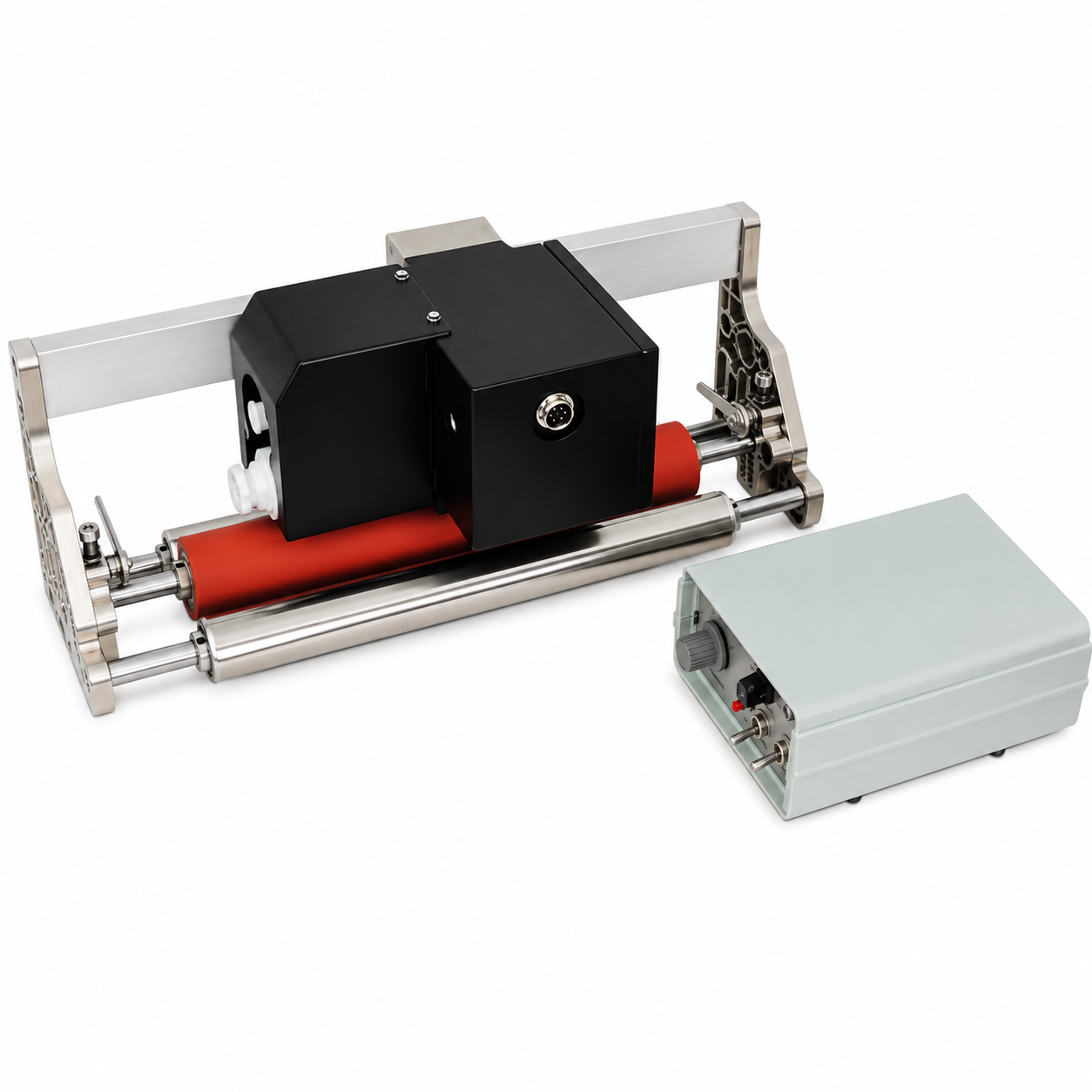

Model: MY-812G
Product Description
Ink Roll Coder Application: This machine can be equipped with in each pillow or vertical packaging machine, automatic print production date, batch number, expiration date, weight, price, size, origin, composition, additives, composition, quality, representation, card number, registration number, manufacturers, distributors, etc.
- Employs intelligent controller.
- More stability and push-button operation.
- Parameter adjustment simple and convenient.
Max. Printing Line (by printing wheel)
- 180° printing wheel: T type (10.5PT): 11 lines (max. 10 characters/line) · R type (10.5PT): 8 lines (max. 11 characters/line)
- 120° printing wheel: T type (10.5PT): 7 lines (max. 10 characters/line) · R type (10.5PT): 8 lines (max. 7 characters/line)
- 90° printing wheel: T type (10.5PT): 4 lines (max. 10 characters/line) · R type (10.5PT): 8 lines (max. 4 characters/line)
Frame Width Options
| Parameter | 400 mm Frame | 500 mm Frame | 600 mm Frame |
|---|---|---|---|
| Max. film width (mm) | 280 | 380 | 480 |
| Max. horizontal adjusting size for printer (mm) | 170 | 270 | 370 |
| Net weight (kg) | 9 | 10 | 11 |
Specifications
| Model | MY-812G |
|---|---|
| Voltage (V/Hz) | 220/50 110/60 |
| Power (W) | 130 |
| Max. Printing Speed (pcs/min) | 300 |
| Size of Character (height) (mm) | 2×1.5 (8PT), 2.5×2 (9PT), 3×3 (10.5PT) |
| Size of Solid-ink Roller (mm) | ф35×32 |
