Product information
What to know about this model

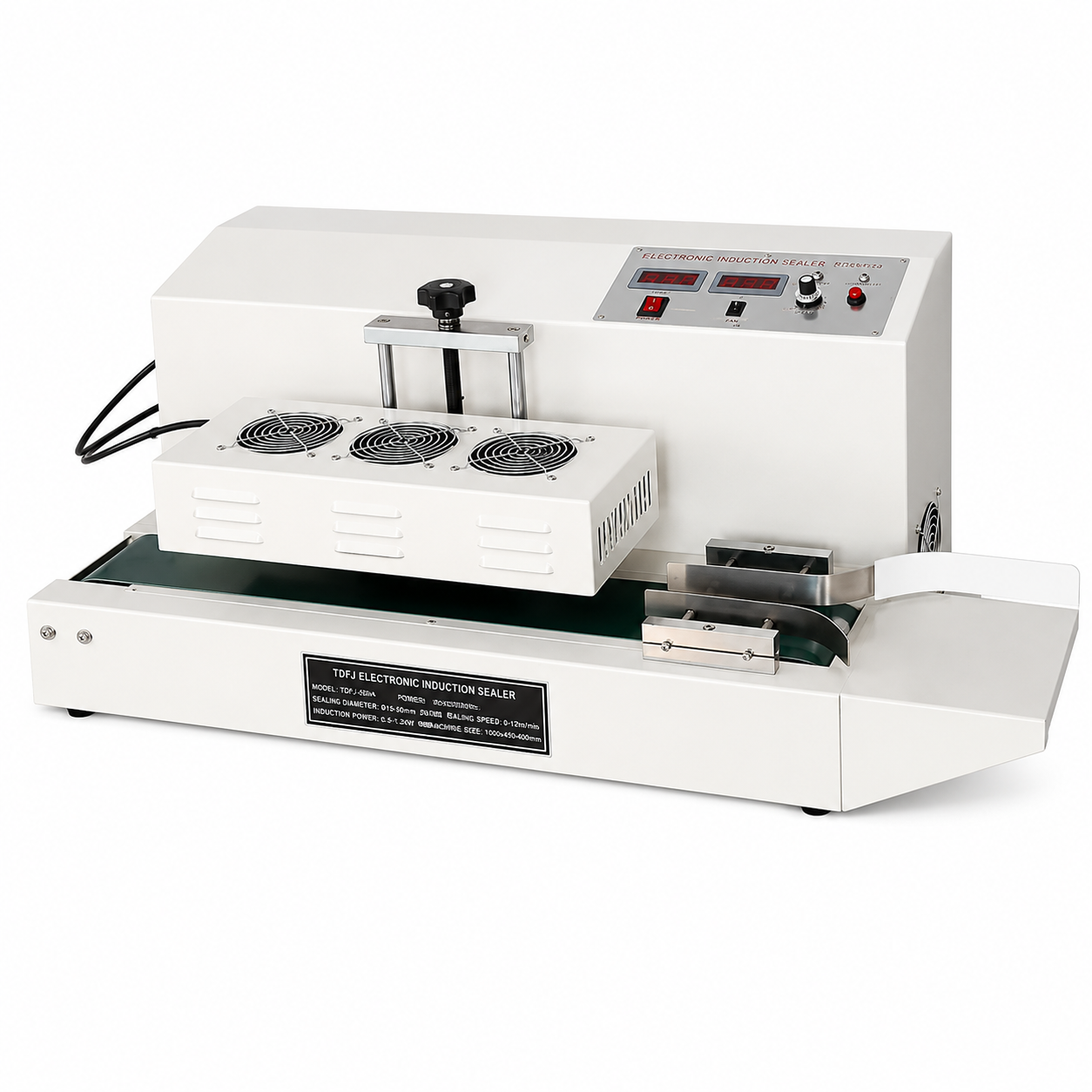

Description The sealing range of the machine is adjustable, and with either large or small sealing surface, and get the ideal sealing quality and efficiency. In case of the equipment failure of the machine in the course of work, the conveyor automatically stops working, to realize the function of isolating the products sealed and those unsealed. The conveyor belt adopts electronic stepless speed adjustment, and during the sealing process can based on voltage and current changes make speed adjustment in a timely manner, in order to achieve the best sealing quality. In this machine, the height of sensor head adopts electric adjustment, capable of sealing the objects within the range of 40-300mm in height. It has supply and voltage meter and sealing ameter, so that it can make timely adjustments when voltage and current fails to meet normal job requirements, to ensure the sealing quality.
Specifications
| MODEL | FPIS-2000AX-I |
|---|---|
| Power (V/Hz) | AC 220/50 |
| Sealing Power (W) | 2000W |
| Sealing Diameter (mm) | Φ20-φ130 (The best diameter is Φ30-φ120) |
| Bottle Height (mm) | 40-300 |
| Sealing Speed (m/Min) | 02-12 |
| Load of conveyor (kg) | ≤20 |
| Housing material | Paint |
| Housing protection grade | IP2I |
| External Dimensions (L×W×H) (mm) | 1150×600×400 |
| Weight (kg) | 40 |
