Product information
What to know about this model

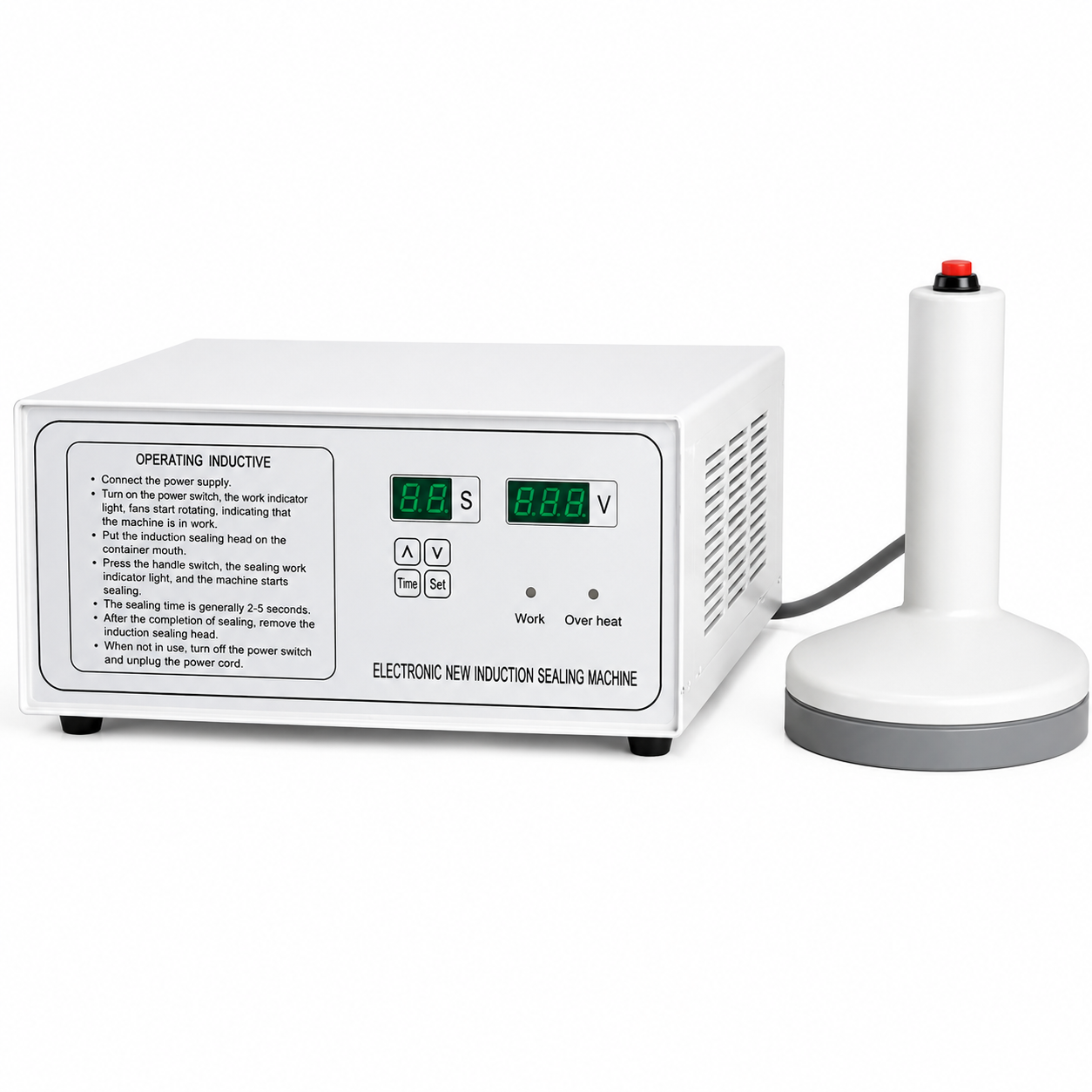

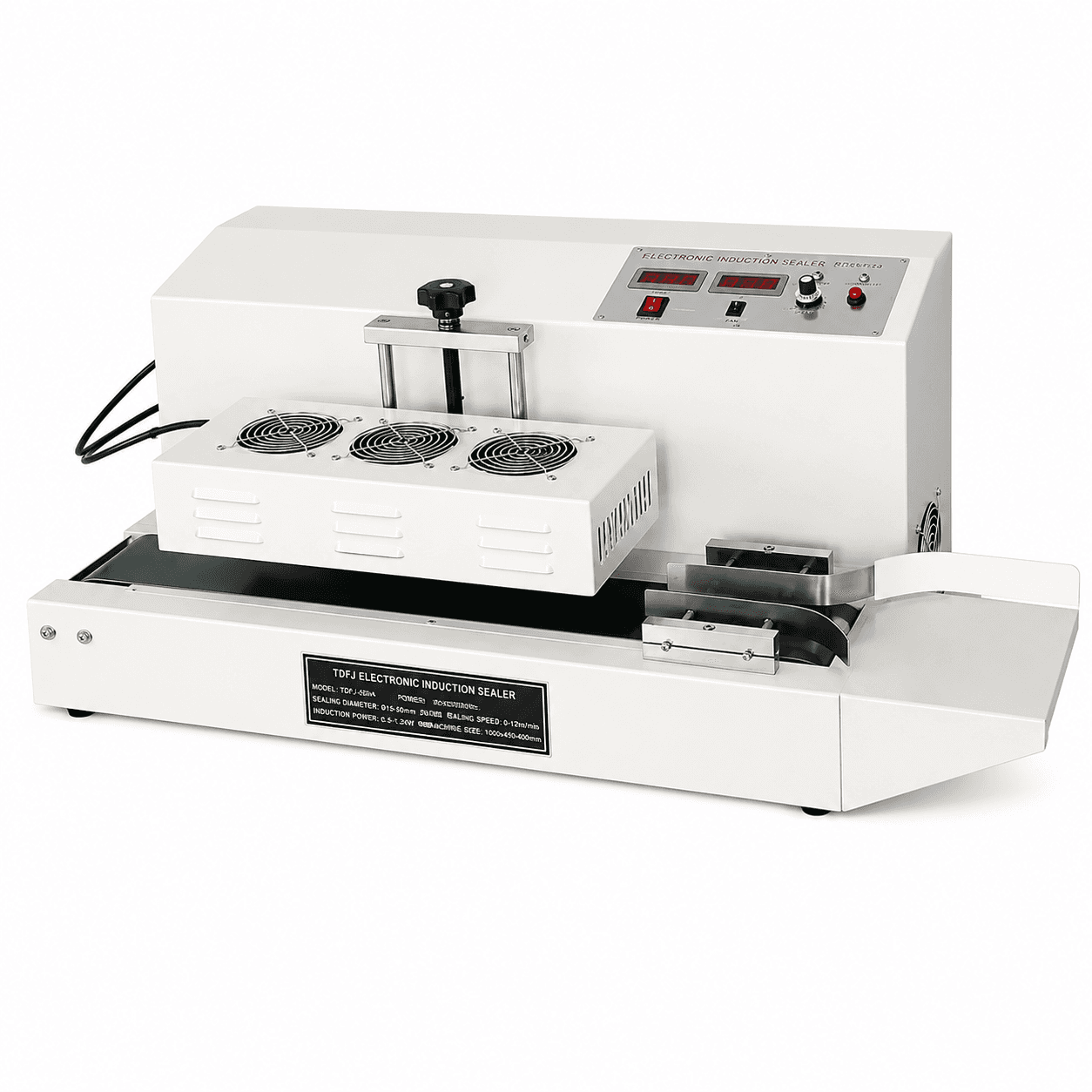

Description An Induction Cap Sealing Machine is used to create a hermetic, leak-proof seal on bottles and containers by heating an induction sealing wad (foil liner) inside the cap through electromagnetic induction. This ensures product freshness, prevents leakage, provides tamper evidence, and extends shelf life. Electromagnetic induction capper is mainly applicable to capping operation of non-metal bottleneck (i.e. plastics, glass) which features of flat threaded cap, but not applicable to capping operation of metal & non-threaded pressing cap, Especially, it is suitable for the customers who carrying out continuous capping operation for large output and lot.
Features
- Non-contact sealing technology.
- Fast and efficient sealing process.
- Leak-proof and tamper-evident sealing.
- Suitable for PET, HDPE, PP, and plastic containers.
- Adjustable sealing power and conveyor speed.
- Easy operation with digital controls.
- Low maintenance and energy-efficient.
- Consistent sealing quality for various cap sizes.
Specifications
| Sealing Diameter | 20–100 mm / 60–130 mm (model dependent) |
|---|---|
| Container Material | PET, HDPE, PP & Plastic Containers |
| Sealing Speed | Up to 150 bottles/min (model dependent) |
| Power Supply | 230V AC, 50 Hz |
| Power Consumption | 1–3 kW (model dependent) |
| Operation | Digital Control Panel |
| Sealing Type | Electromagnetic Induction Sealing |
