Product information
What to know about this model

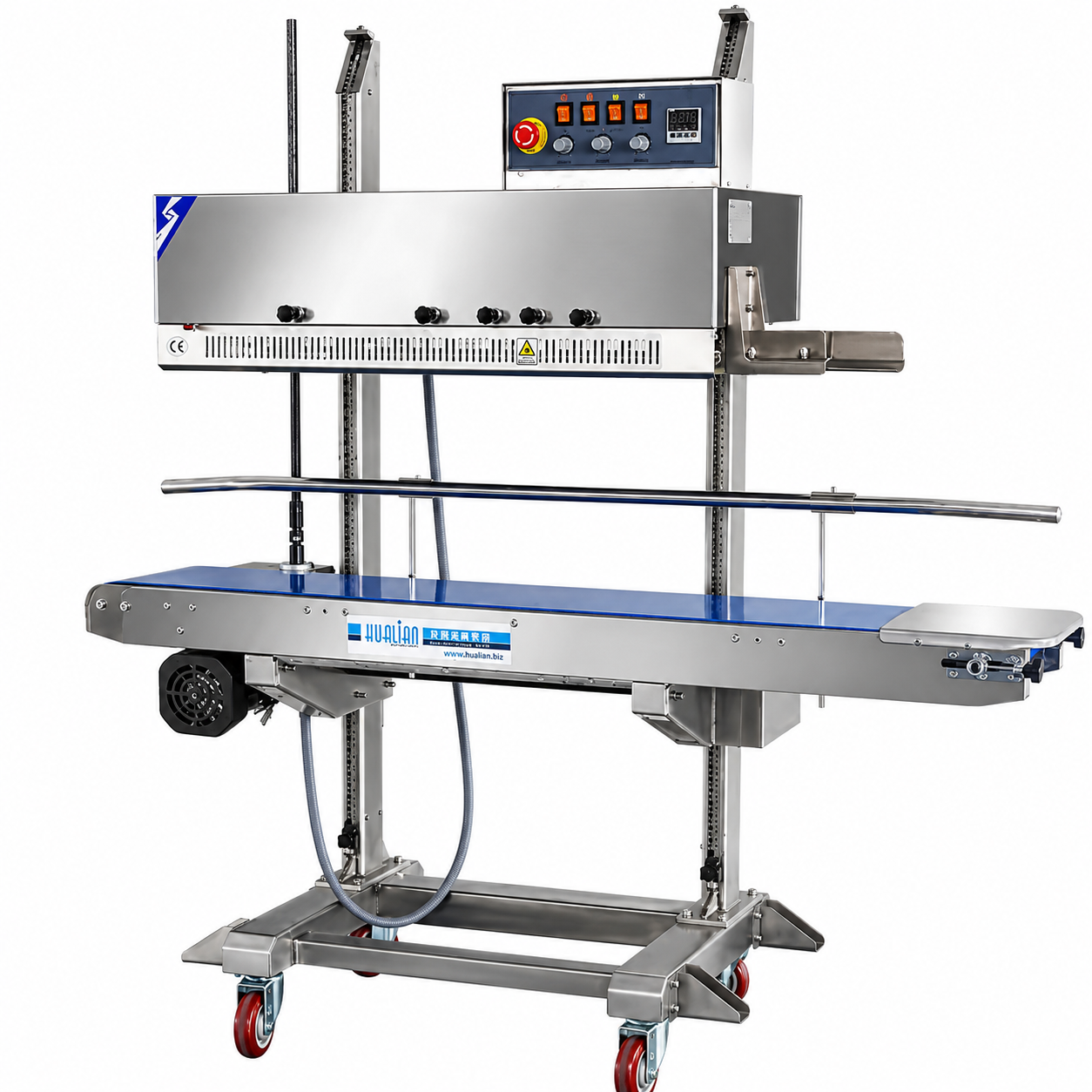

Description 1120LD can seal all kinds of heat-sealable materials, which adopts a constant temperature control system and step-less speed adjusting transmission mechanism. The machine works with a solid-ink coder to print the colored labels while sealing. The coder is able to print at high speed with instant dry and highly legible letters that have good adhesion properties. Features √Reliable performance √Simple operation √Convenient maintenance √Wide range of application √Constant temperature control system √Stepless speed regulation √Adjustable height of conveyor and sealing head
Specifications
| MODEL | FPBS-1120LD |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Motor Power (W) | 200 |
| Sealing Power (W) | 400×2 |
| Printing Heating Power (W) | 40×2 |
| Speed (m/min) | 0-10 |
| Sealing Width (mm) | 10 |
| Temperature Range (℃) | 0-300 |
| Printing Type | Solid-Ink Roller |
| Distance from Sealing Center to Conveyor Table (mm) | 100-700 |
| Conveyor Size (L × W) (mm) | 1430X250 |
| Net Weight (kg) | 138 |
| Overall Conveyor Loading(kg) | ≤15 |
| External Dimensions (L × W × H) (mm) | 1430×550×1570 |
