Product information
What to know about this model

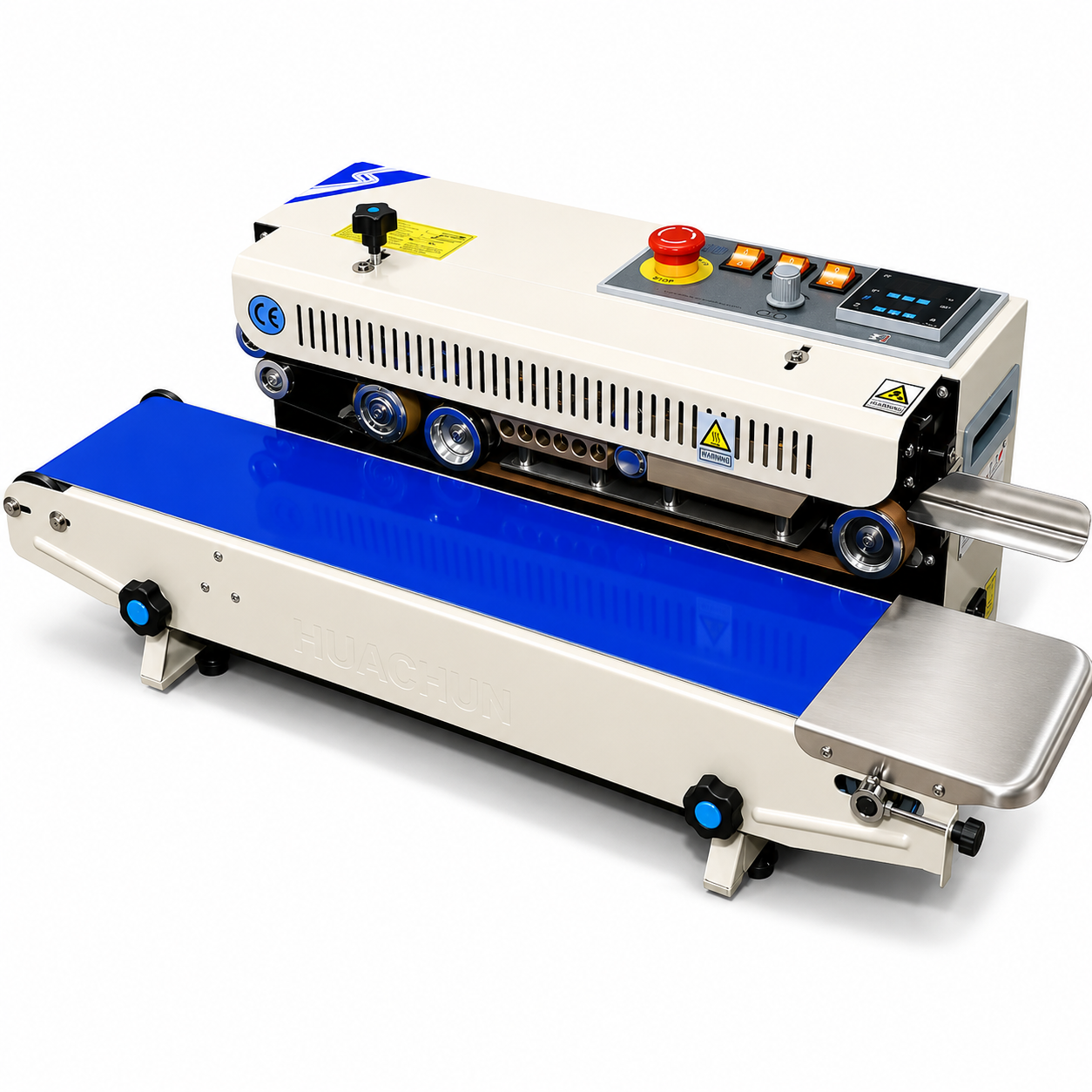

Description The machine is ideal for sealing small packages, which adopts a constant temperature control system and step-less speed regulation mechanism. Features √Reliable performance √Simple operation √Convenient maintenance √Wide range of application √Constant temperature control system √Stepless speed regulation √Embossing wheel and counting device are optional Application 1.This continuous sealing machine is suitable for sealing all kinds of heat-sealed packages continuously. Such as PE bag, accordion bag, aluminum foil bag, kraft paper bag, etc 2. It widely use in the food, pharmaceutical industry, chemical industry, agriculture, lubricating oil, and other industries. 3.To use in the place where there is a restriction on space, such as small factory, monopolization shop, and workshop, etc
Specifications
| MODEL | FPBS-770I |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Motor Power (W) | 50/100 |
| Sealing Power (W) | 300×2 |
| Sealing Speed (m/min) | 0-16 (0-24) |
| Sealing Width (mm) | 10 |
| Temperature Range (℃) | 0-300 |
| Printing Type | Steel wheel embossing wheel printing (optional) |
| Distance from Sealing Center to Conveyor Table (mm) | 10-40 |
| Distance from Base plate to Interior Conveyor (mm) | 65-85 |
| Conveyor Size (L×W) (mm) | 840×180 |
| Net Weight (kg) | 23 |
| Overall Conveyor Loading (kg) | ≤10 |
| External Dimensions (L×W×H) (mm) | 844×402×320 |
