Product information
What to know about this model

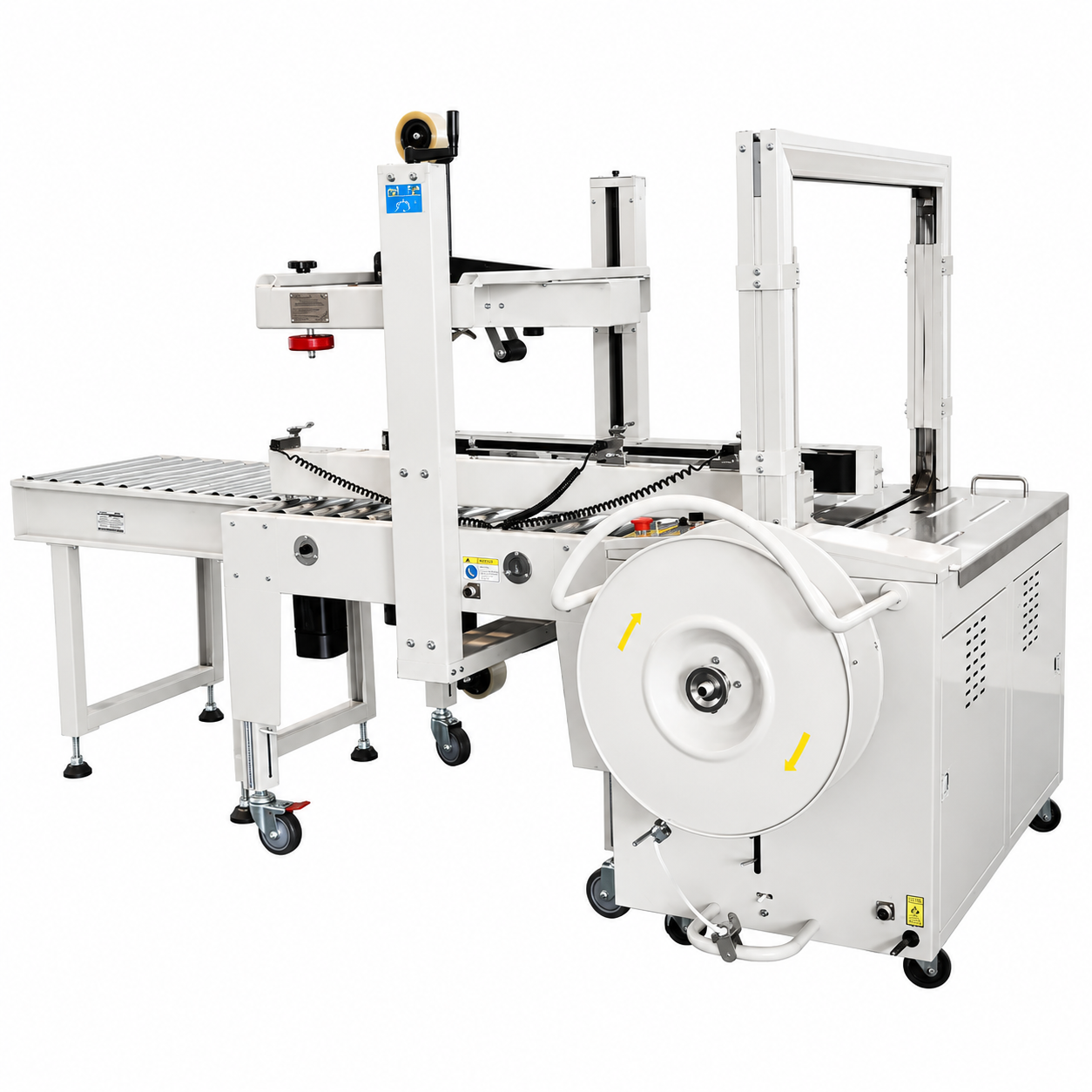

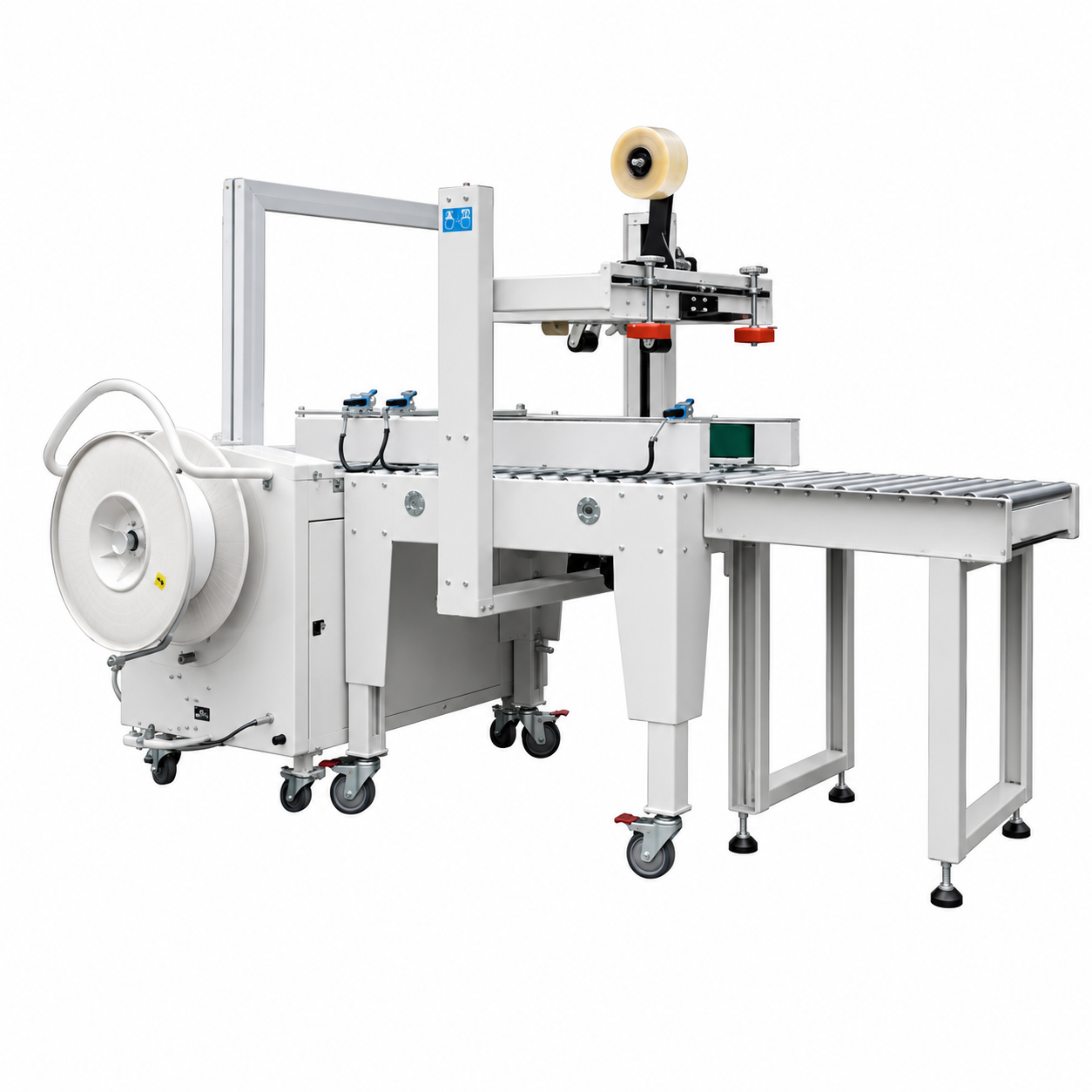

Description The simple packaging line is composed of automatic carton sealer and automatic strapping machine process which achieves the upper and lower carton sealing of the carton and the single or double strapping of the carton. It adopts intelligent programmable control and has a simple and compact structure; it reduces the handling of personnel and improves production efficiency; arranged in a straight line.
Key Features
- Automatic carton sealing and strapping system.
- Suitable for medium to high-volume packaging lines.
- Compatible with multiple tape widths.
- Supports various plastic strapping belt sizes.
- High throughput of up to 600 cartons per hour.
- Robust industrial construction with a net weight of 425 kg.
Specifications
| Model | XFK-1 |
|---|---|
| Voltage Supply (V/Hz) | Three-phase AC 380/50 |
| Total Power (W) | 1050 |
| Maximum Carton Size (L × W × H) | 600 × 500 × 500 mm |
| Minimum Carton Size (L × W × H) | 300 × 130 × 180 mm |
| Assembly Line Speed (m/min) | 20 |
| Throughput (pcs/h) | 600 |
| Height of Worktop (mm) | 750 |
| Sealing Tape | BOPP, PVC tape, water-free adhesive tape; width 48, 60, 76 mm (optional) |
| Available Strapping Belt | Plastic strapping belt; width 9–15 mm, thickness 0.5–1.1 mm |
| Outline Size (L × W × H) (mm) | 2650 × 1420 × 1565 |
| Net Weight (kg) | 425 |
