Product information
What to know about this model

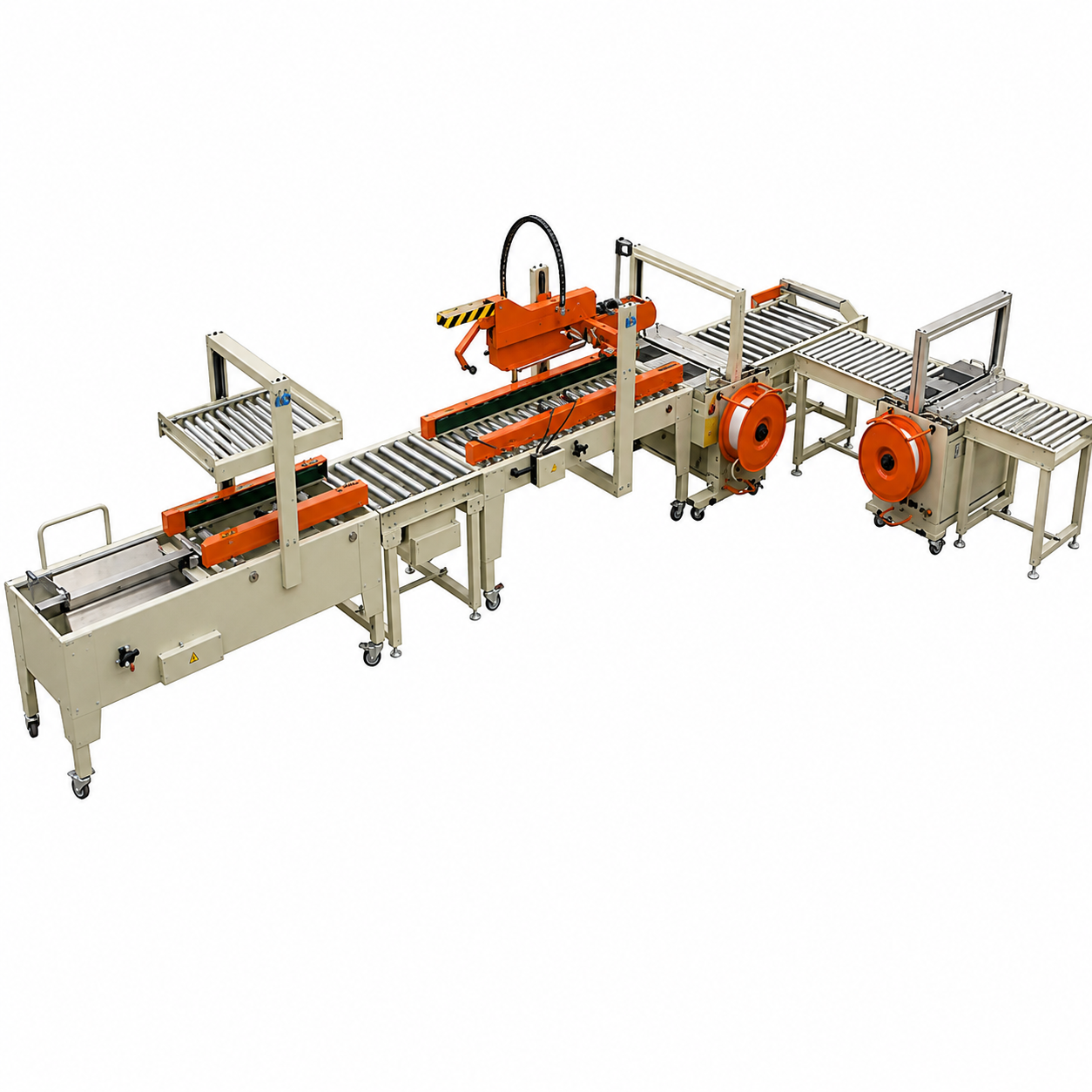

Description The simple packaging line is composed of automatic flap carton sealer and automatic strapping machine process which achieves the upper and lower flap carton sealing of the carton and the single or double strapping of the carton. It adopts intelligent programmable control and has a simple and compact structure; it reduces the handling of personnel and improves production efficiency; arranged in a straight line.
Specifications
| MODEL | XFK-3 |
|---|---|
| Voltage (V/Hz) | AC 380/50 |
| Power (W) | 4100 |
| Max. Carton Size (L× W×H) (mm) | 500×400×450 |
| Min. Carton Size (L× W×H) (mm) | 180×260×180 |
| Speed (m/min) | 200 |
| Productive Capacity (pcs/h) | 600 |
| Height of Table (mm) | 750 |
| Adhesive Tape (mm) | BOPP, PVC adhesive tape, water-free adhesive tape width 48、60、76mm（Optional） |
| Available Strapping Belt (mm) | plastic strapping belt，width9~15 thickness0.5~1.1 |
| Air Compressor (optional) | 2/3 litres at 5 bars |
| External Dimensions (L×W×H) (mm) | 7850×3500× 1700 |
| Net Weight (kg) | 950 |
